SP235

High-Payload Spot Welding Robot

Engineered for precise and fast spot-welding performance, the six-axis SP235 high-payload capacity robot offers incredibly quick axis speeds and acceleration capabilities to reduce air-cut time. Engineered with high moment and inertia ratings for accommodating a wide range of spot guns and other end of arm tooling, the SP235 robot also features a slim profile to facilitate reaching into tight spaces and high-density layouts. While optimized servo gun and DC timer technology help to increase quality and productivity, spot monitoring and waveform graphing help to monitor and troubleshoot welding conditions. Equipped with a wide wrist motion range for increased application flexibility, the SP235 enables simplified programming for complicated parts.

Applications
Spot Welding
235 kg
Payload
YRC1000
Controller
2710 mm
Horizontal Reach
3490 mm
Vertical Reach

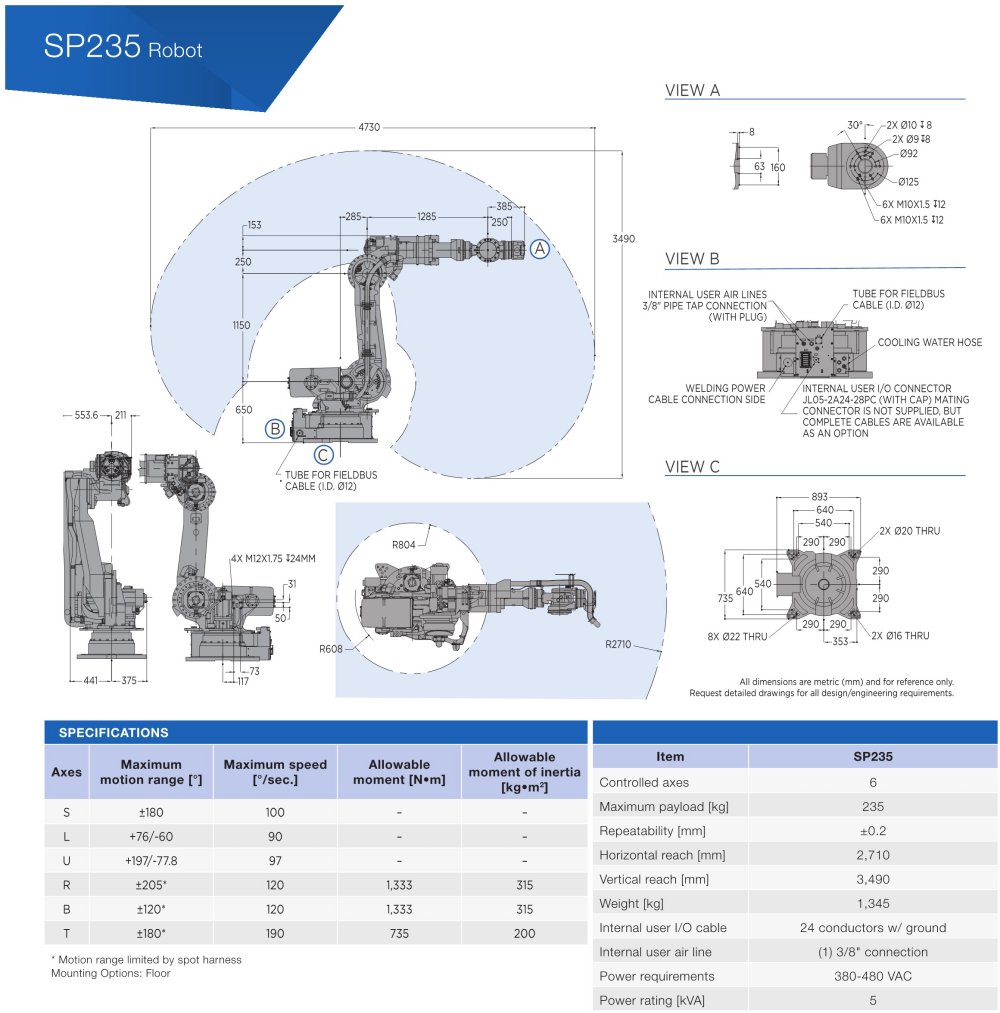

SP235 Specifications
