Press Brake Handling Robot

Designed for powerful press handling performance, the six-axis PH130RF shelf-mounted robot is a smart choice for “jigless” applications. Built with high-performance drive systems on the S-, L- and U-axes (axes 1, 2 and 3), the PH130RF robot is ideal for high duty cycle applications in the press room. While a large work envelope and high moment of inertia ratings accommodate a variety of parts, fast axis speeds and acceleration capabilities decrease cycle time and optimize production output. A streamlined upper arm provides easy access to parts in confined spaces, and a reduced interference design enables the robot to be placed closer to machines and fixtures, optimizing valuable floorspace.

Material Handling, Press Tending
130 kg
3474 mm
Horizontal Reach
4151 mm
Vertical Reach

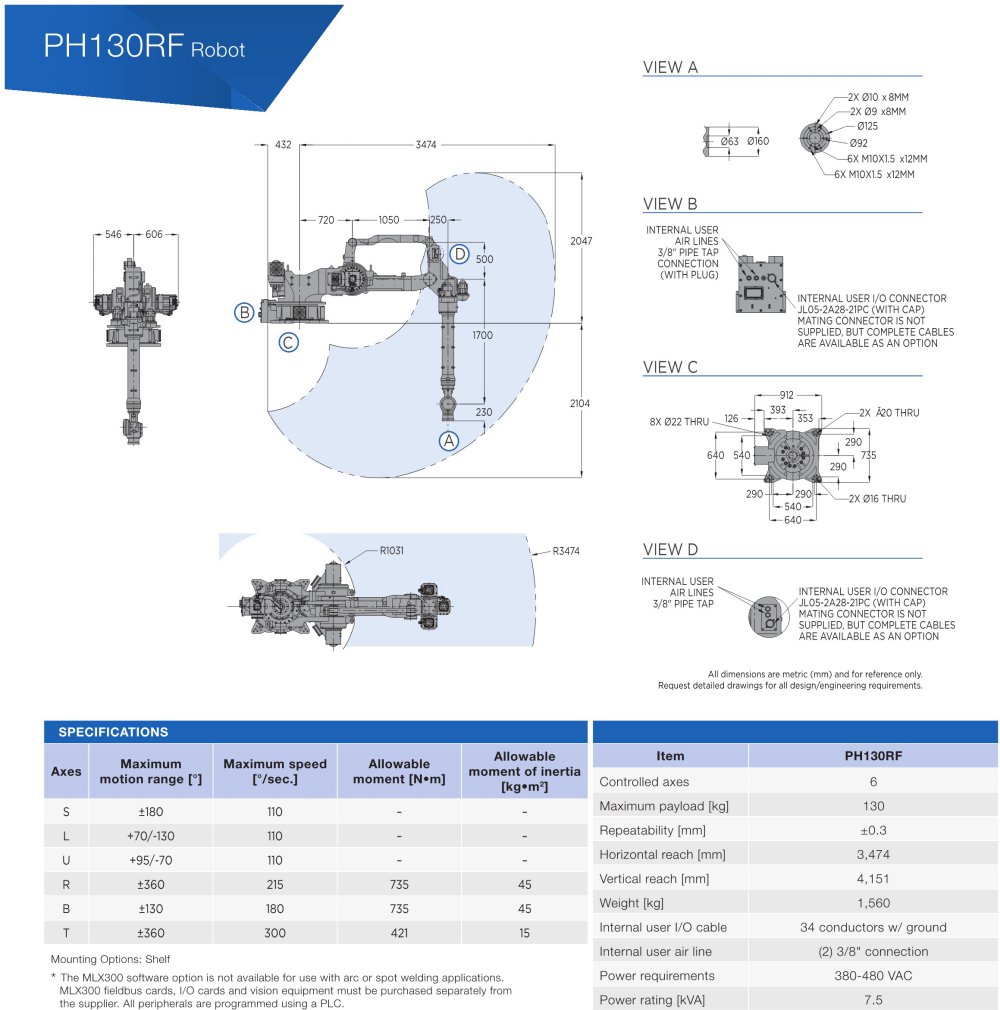

PH130RF Specifications
