MH24-10

Extended-Reach Robot Arm

Slim, extended reach MH24-10 robot increases productivity and achieves high performance. Powerful high-speed six-axis robot is ideal for a variety of applications. Hollow upper arm provides optimal cable protection and long life while simplifying programming. A 50 mm clearance through axes 4-6 encloses the cable and protects it from wear, interference or snagging.

Applications
Assembly, Dispensing, Machine Tending
10 kg
Payload
DX200
Controller
2010 mm
Horizontal Reach
3649 mm
Vertical Reach

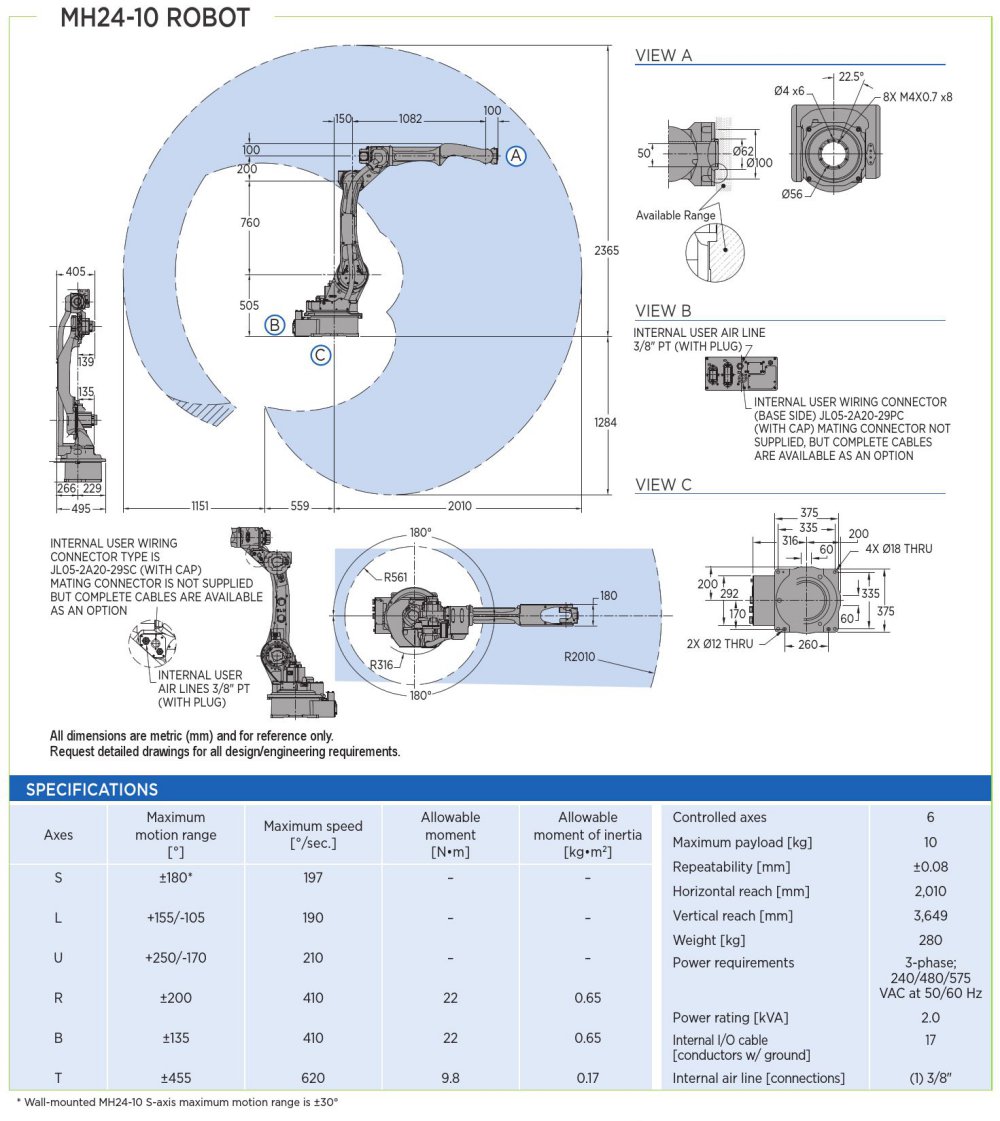

MH24-10 Specifications
