GP225H

Heavy-Payload, Hollow-Arm Robot

Boost operational efficiency for a variety of heavy-payload handling applications with the six-axis GP225H hollow-arm robot. Featuring very quick axis speeds and powerful acceleration capabilities, this robot offers optimized cable routing for reduced interference and wear. Designed with increased moment and inertia rating over the non-hollow GP225 model, the GP225H is equipped with a with a single robot-to-controller cable connection for easy installation and operation, simplifying maintenance. The GP225H is pre-wired for servo gripper, and it is ideal for high-density layouts. A secure mounting spot on the robot arm offers a secure location for customer equipment.

Applications
Machine Tending, Material Removal, Material Cutting/Trimming, Material Handling, Part Transfer, Pick and Place, Press Tending
225 kg
Payload
YRC1000
Controller
2702 mm
Horizontal Reach
3393 mm
Vertical Reach

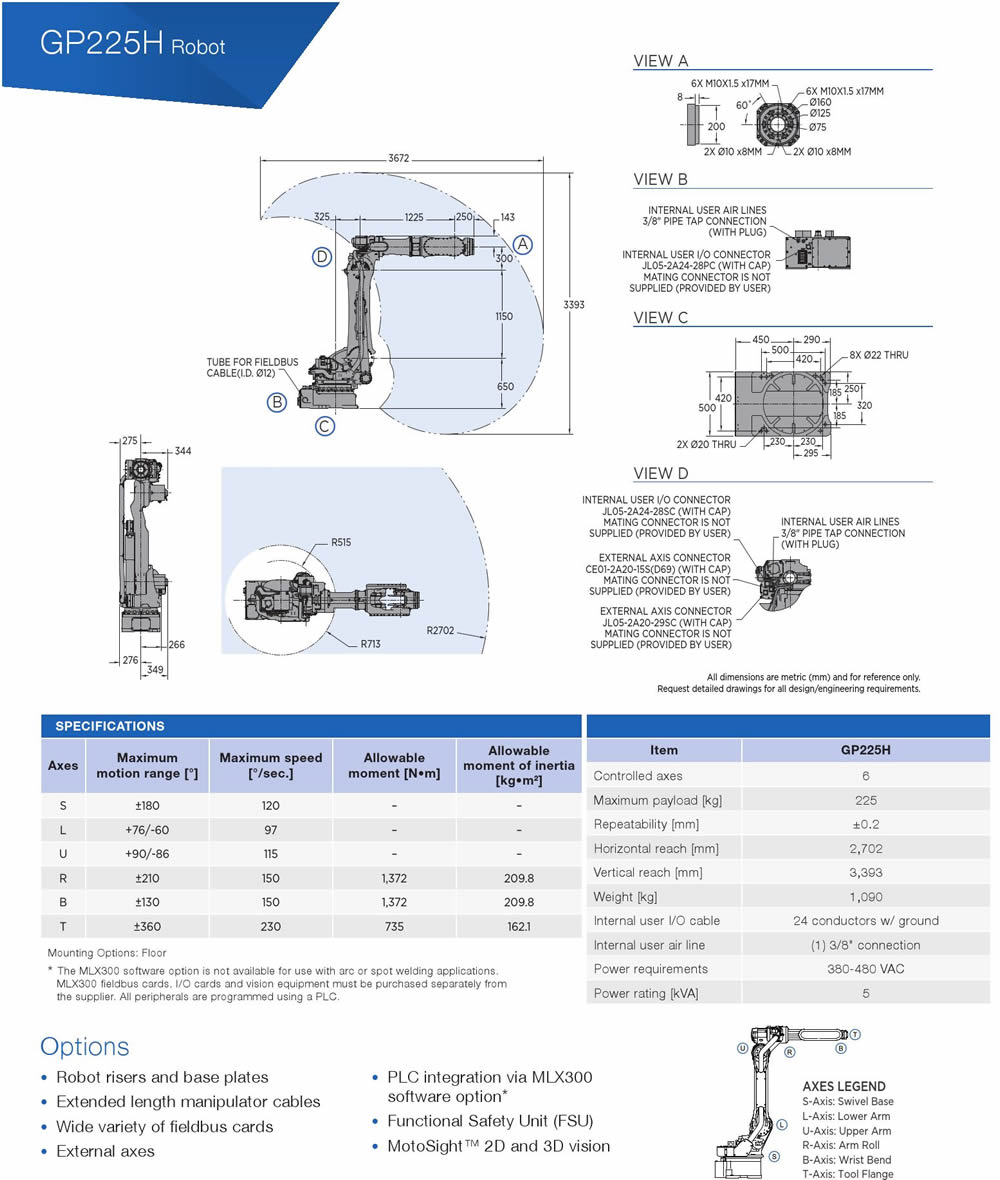

GP225H Specifications
