฿7,891.00
Voltage Probe, 10:1, with safety-designed shrouded 4mm testpin, for use with 120 Series ScopeMeter®
Hook clip and ground lead included. The shrouded 4mm banana testpin makes this probe also compatible with standard safety-designed alligator clips (like e.g. the AC285).

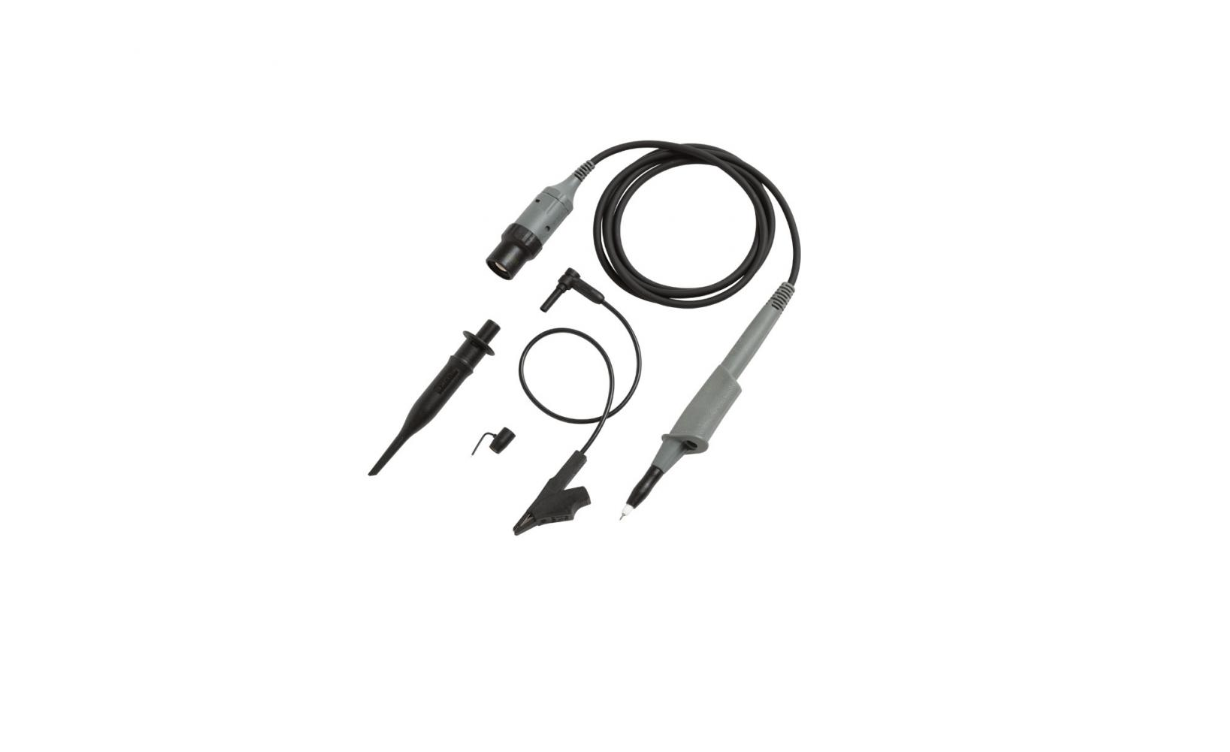

Voltage Probe, 10:1, with safety-designed shrouded 4mm testpin
Set contains 600 V CAT III / 1000 V CAT II rated items:
| Specification | |
| Attenuation | 10x |
| Bandwidth | DC to 40 MHz (-3 dB) |
| Max input voltage | 600 V CAT III / 1000 V CAT II as per IEC61010-031:2008 |
| V*Hz product | 500*10^6 VHz |
| Max floating voltage | See instrument manual |
| Input resistance / Capacitance | 5 MΩ / 15.5 pF |
| Compensation | Fixed for ScopeMeter 120 Series (14 pF) |
| Probe tip | Safety-shrouded 4 mm banana pin with test tip (see photo) |
| Instrument connector | 4 mm shielded banana plug |
| Cable length | 1.2 m |
| Safety | IEC / EN 61010-031:2008; UL61010 B-2-031; CSA C22.2 No. 1010.2.031 |
| Working voltage | 600 V CAT III / 1000 V CAT II |
| Pollution degree | 2 |
| Protection | Class II (double insulation) |
