฿25,515.00

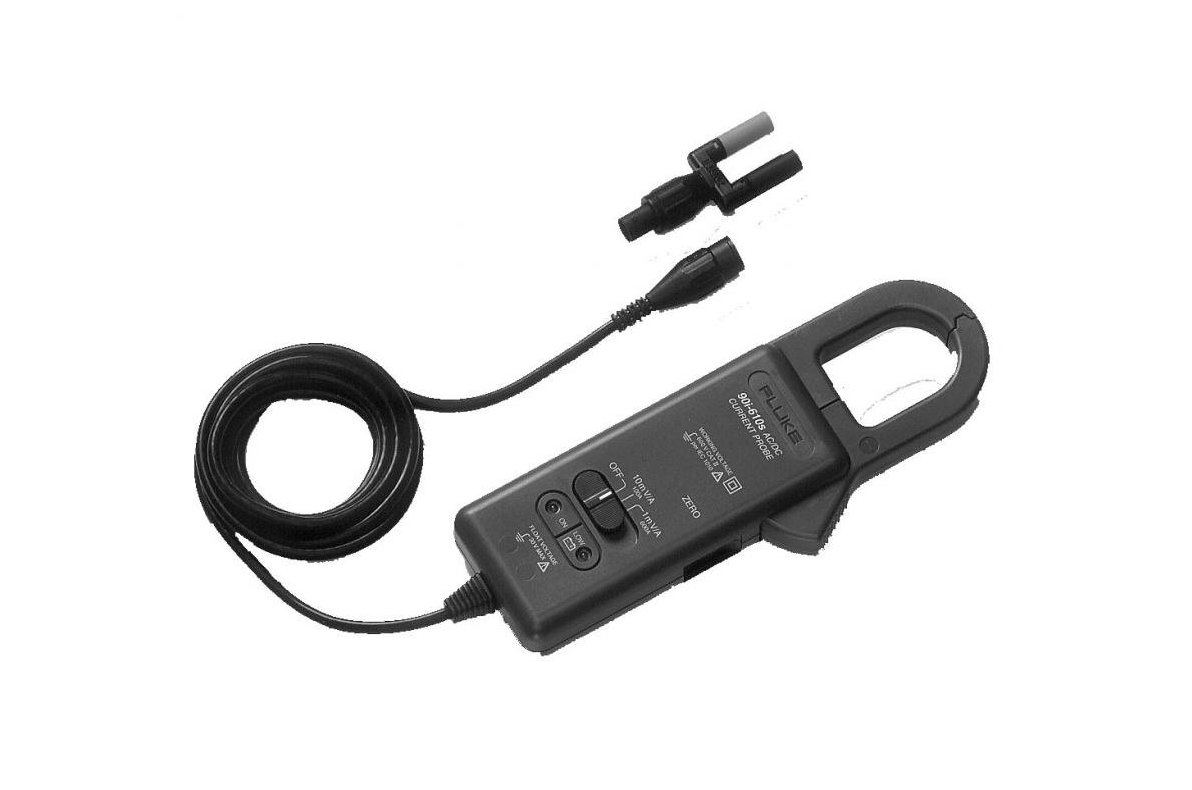

The 90i-610s is a clamp-on AC/DC Current Probe designed to measure current waveforms in automotive applications with any Test Tool capable of millivolt measurements. There are two measurement ranges: 0 to 100 A (output voltage 10 mV/A) and 0 to 600 A (output voltage 1 mV/A).
1A to 600A AC/DC Current Probe
| Specifications | |
| Current range | 1 to 600 A DC or AC Peak |
| Basic accuracy | (DC to 400 Hz): ±(2% of reading + 1 A) |
| Output signal | 100 A range: 10 mV/A | 600 A range: 1 mV/A |
| Frequency range | 40 Hz to 400 Hz |
| Working voltage | 600 V AC rms |
| Maximum conductor diameter | 34 mm (1.34 in) |
| Safety Rating | IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600 V |
