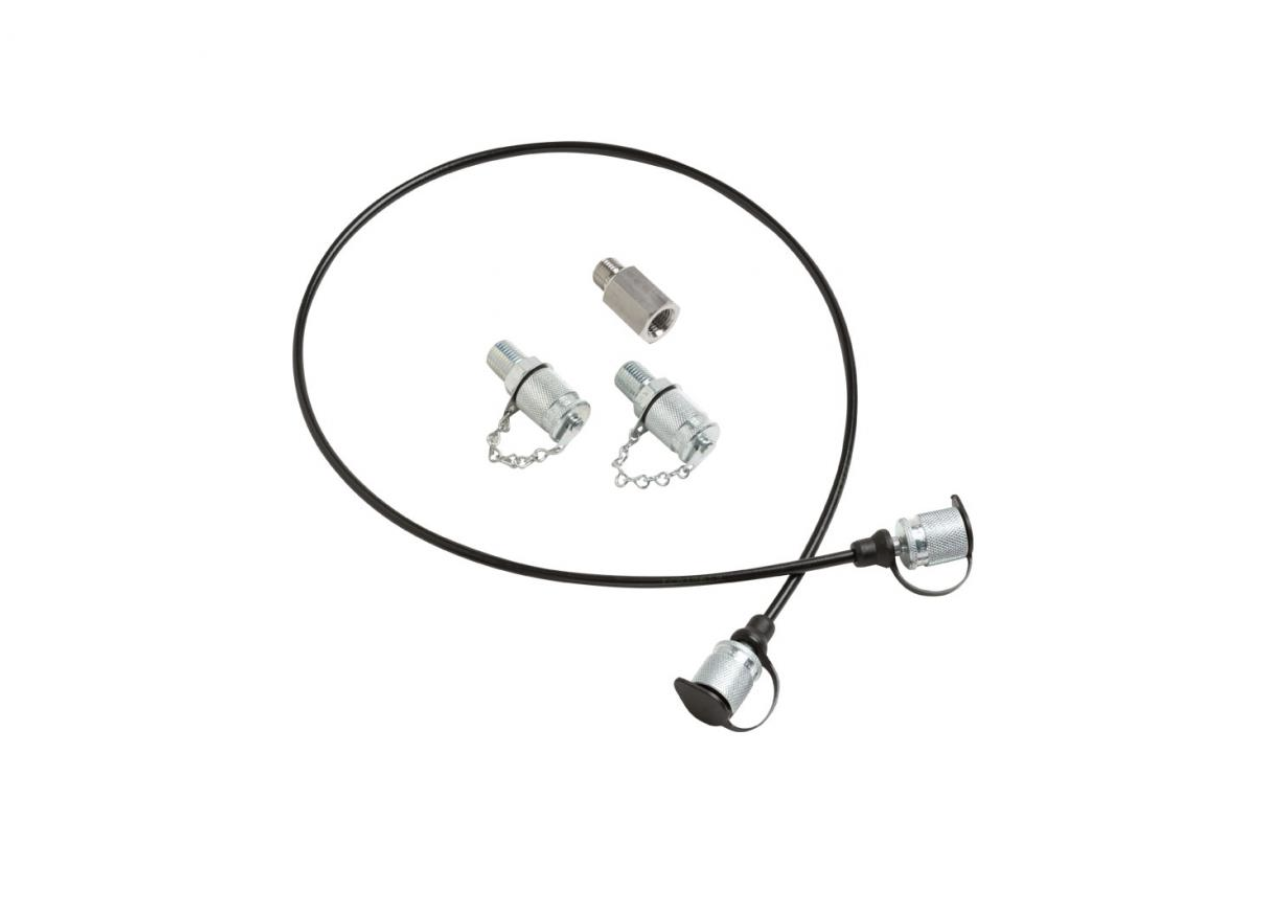

Fluke 700HTH-1 Hydraulic Test Hose

Fluke 700HTH-1 Hydraulic Test Hose

฿27,217.00

Key features

  • Hose and fittings connect directly to the Fluke 700HTP-1 test pressure port
  • Includes plugs and caps to eliminate fluid loss in hose, eliminates the need to re-prime the hose
  • Self-sealing fittings with easy finger tight connections
  • Low volumetric expansion and a negligible pressure drop at rated pressures
Categories: , Tag:

Product overview: Fluke 700HTH-1 Hydraulic Test Hose

The Fluke 700HTH-1 hydraulic test hose is a 10,000 psi, 690 bar working pressure test hose that features stainless steel and nylon construction for use in connecting a Fluke-700HTP-1 or other hydraulic test pump to a unit under test.

The Fluke 700HTH-1 allows connection to both a Fluke pressure module and a calibration unit under test from a Fluke 700HTP-1 hydraulic test pump simultaneously. 700HTH-1 is compatible with water and non-corrosive oil.

Models: Fluke 700HTH-1 Hydraulic Test Hose

Fluke 700HTH-1

Hydraulic Test Hose

  • Hose with (2) 1/4″ NPT female output connections
  • (2) adapters that to convert ¼: NPT female to 1/4″ NPT male (include sealing caps)
  • 1/4 in NPT female to 1/4 in BSP male adapter
  • Instruction sheet

Specifications: Fluke 700HTH-1 Hydraulic Test Hose

Mechanical and General Specifications
Minimum bend radius 60 mm / 2.36 in.
Temperature – 40°C to +120°C, ( -40°F to +250°F)
Material Nylon, stainless steel, zinc, plated steel, and nitrile
Dimensions .84 m (33 in) long without adapter fittings
Weight 412.8 g (.910 oz)
Warranty One year
