Fluke 345 Power Quality Clamp Meter – Electronic Power Meter

Fluke 345 Power Quality Clamp Meter – Electronic Power Meter

฿150,066.00

Key features

  • Combines the functions of a power analyzer, power quality logger, scope, data logger, and clamp meter in one handy tool
  • Measures AC current to 1400 A RMS and DC current to 2000 A without breaking the circuit
  • Carries the highest safety rating: 600 V CAT IV rated for use at the service entrance
Categories: , Tag:

Product overview: Fluke 345 Power Quality Clamp Meter – Electronic Power Meter

AC and DC current and voltage measurement – ideal tool for troubleshooting and logging on power electronics

The Fluke 345 is more than an electric power meter. Combining the functions of a clamp meter, oscilloscope, data logger and digital power meter into one handy device, the Fluke 345 is ideal for working with variable frequency motor drives, high efficiency lighting and other loads using switching electronics.

The multi-faceted Fluke 345 is packed with features such as a bright, color display to analyze the harmonic spectrum, a low-pass filter to remove high frequency noise and a high EMC immunity design, making the Fluke 345 power analyzer ideal for troubleshooting power quality on switching loads. The internal memory of this electric power meter enables long-term power quality logging for analysis of trends or intermittent problems. Additionally, the Hall Effect clamp meter design makes measurement of dc current possible without the need to break the circuit.

Besides effectively performing basic tasks like measuring power and power factor, the Fluke 345 power meters offer the ease of use, portability and flexibility needed to resolve most power issues in commercial, industrial and residential settings.

  • Setup and troubleshoot variable frequency drives and UPS systems – Verify correct operation by measuring key power quality parameters
  • Harmonics measurements – Uncover harmonic issues that can damage or disrupt critical equipment
  • Inrush capture – Check start-up current where spurious resets or nuisance circuit breaker tripping occurs
  • Load studies – Verify electrical system capacity before adding loads

For three phase applications the 1735 and 43- Series II products will provide the same type of results.

Other useful features:

  • Delivers accuracy even in noisy environments with distorted waveforms present on electronic loads with low-pass filter
  • Logs any power quality parameter, including harmonics, for minutes or for over a month to help identify intermittent faults
  • Verifies batteries with direct measurement of DC ripple (%) for battery and DC systems
  • Analyzes and logs harmonics digitally or graphically
  • Captures and analyzes inrush current nuisance tripping due from 3 seconds to 300 seconds
  • Makes it easy to confirm power meter setup with large backlit color display of waveforms and trends
  • Downloads logged data via USB with PowerLog application software making it easy to view trends and screenshots, analyze, and create reports
  • Powers the instrument without using the battery when performing extended logging sessions
  • Provides built in three-phase power measurement capability for balanced loads
  • Allows you to view graphs and generate reports with included Power Log software

Models: Fluke 345 Power Quality Clamp Meter – Electronic Power Meter

Fluke 345

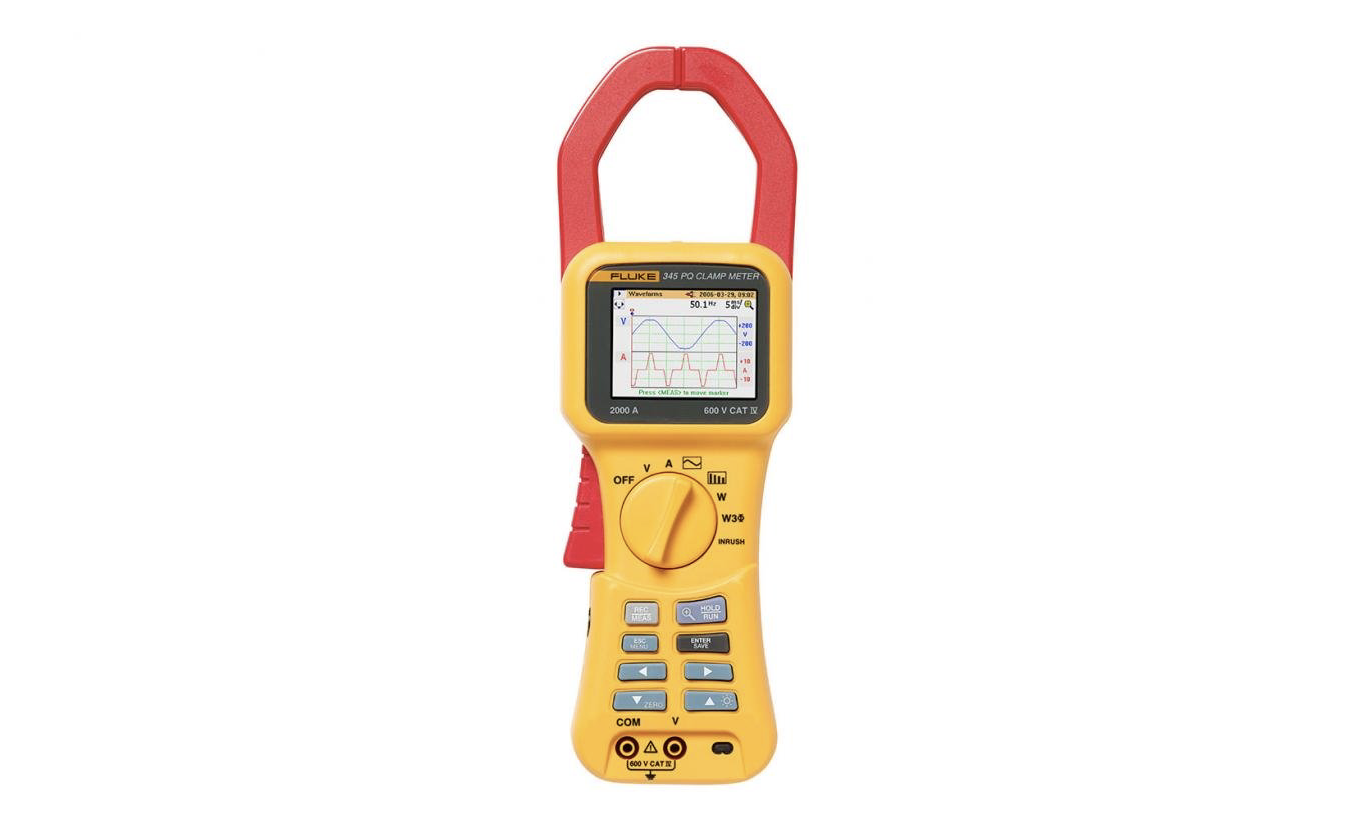

Fluke 345 Power Quality Clamp Meter

Includes:

  • 345 Power Quality Clamp Meter
  • Soft carrying case
  • Power Log software
  • Test leads
  • Alligator clips
  • Test probes
  • USB cable
  • International ac adapter / battery eliminator
  • Printed English language user manual
  • Multi-language manual CD

Specifications: Fluke 345 Power Quality Clamp Meter – Electronic Power Meter

Specifications
Display Color transmissive LCD 320 x 240 pixels (70 mm diagonal) with 2 level backlight
Power supply Battery type 1.5 V Alkaline AA MN 1500 or IEC LR6 x 6
Battery life typically > 10 hours (backlight on full)
> 12 hours (backlight reduced)
Battery eliminator Input 110/230 V 50/60 Hz
Output 15 VDC, 300 mA
Ambient conditions (for indoor use only)
Reference conditions All accuracies stated at 23°C ±1°C (73.4°F ±1.8°F)
Operating temperature 0°C to 50°C (32°F to 122°F)
Temperature coefficient of current ≤ ±0.15% of rdg per °C
Temperature coefficient of voltage ≤ ±0.15% of rdg per °C
Maximum relative humidity 80% for temperatures up to 31°C (87°F) decreasing linearly to 50% relative humidity at 40°C (104°F)
Maximum operating altitude 2000 m
Electrical safety
Maximum safe working voltages Safety IEC 61010-1 600 V CAT IV double or reinforced insulation, pollution degree 2
Protection IP40; EN60529
Current measurement 600 VAC rms or DC between uninsulated conductor and ground
Voltage measurement 600 VAC rms or DC between either input terminal and ground, or 825 V between energized phase voltages (delta power config.)
EMC
Emission IEC/EN 61326-1:1997 A
Immunity IEC/EN 61326-1:1997 Annex C Performance Criterion B
Mechanical
Dimensions (L x W x D) 300 x 98 x 52 mm (12 x 3.75 x 2 in)
Weight including batteries 820 g (1.8 lb)
Jaw opening 60 mm
Jaw capacity 58 mm diameter
Cleaning The unit can be cleaned with an Isopropanol impregnated cloth. Do not use abrasives or other solvents.
Electrical data
Accuracy 23°C ±1°C (73.4°F ±1.8°F). See Ambient conditions specifications for temperature coefficients.
Current measurement (DC, DC rms, AC rms)
Measuring range 0 to 2000 A DC or 1400 AC rms
Autorange facility 40 A / 400 A / 2000 A
Resolution 10 mA in 40 A range
100 mA in 400 A range
A in 2000 A range
Accuracy: DC and DC rms I > 10 A ±1.5% rdg ±5 digits
I < 10 A ±0.2 A
Accuracy: AVG I > 10 A ±3% rdg ±5 digits
I < 10 A ±0.5 A
Accuracy: Pk I > 10 A ±5% rdg ±5 digits
I < 10 A ±0.5 A
Accuracy: AHr I > 10 A ±2% rdg ±5 digits
I < 10 A ±0.5 AHr
Accuracy: CF (Crest Factor) 1.1 ≤ CF < 3 ±3% rdg ±5 digits
3 ≤ CF < 5 ±5% rdg ±5 digits
Resolution 0.01
Accuracy: RPL (Ripple) 2% ≤ RPL < 100%  ±3% rdg ±5 digits
100% ≤ RPL < 600% ±5% rdg ±5 digits
Resolution 0.1%
I DC > 5 A, I AC > 2 A
All measurements DC and 15 Hz to 1 kHz
Maximum overload 10,000 A or rms x frequency < 400,000
Amps rms is a true-rms measurement (AC + DC)
Voltage measurement (DC, DC rms, AC rms)
Measuring range 0 to 825 VDC or AC rms
Autorange facility 4 V / 40 V / 400 V / 750 V
Resolution 1 mV in 4 V range
10 mV in 40 V range
100 mV in 400 V range
1 V in 750 V range
Accuracy: DC and DC rms V > 1 V ±1% rdg ±5 digits
V < 1 V ±0.02 V
Accuracy: AVG V > 1 V ±3% rdg ±5 digits
V < 1 V ±0.03 V
Accuracy: Pk V > 1 V ±5% rdg ±5 digits
V < 1 V ±0.03 V
Accuracy: CF (Crest Factor) 1.1 ≤ CF < 3 ±3% rdg ±5 digits
3 ≤ CF < 5 ±5% rdg ±5 digits
Resolution 0.01
Accuracy: RPL (Ripple) 2% ≤ RPL < 100% ±3% rdg ±5 digits
100% ≤ RPL < 600% ±5% rdg ±5 digits
Resolution 0.1%
VDC > 0.5 V, VAC > 0.2 V
All measurements DC and 15 Hz to 1 kHz
Maximum overload 1,000 V rms
Volts rms is a true-rms measurement (AC + DC)
Harmonics
THD (Total Harmonic Distortion) 1% ≤ THD < 100% ±3% rdg ±5 digits
100% ≤ THD < 600% ±5% rdg ±5 digits
Resolution 0.1%
DF (Distortion Factor) 1% ≤ DF < 100% ±3% rdg ±5 digits
Resolution 0.1%
H02 ≤ Vharm < H13 ±5% ±2 digits
H13 ≤ Vharm ≤ H30 ±10% ±2 digits
All measurements up to 30th harmonic (40th harmonic for 15 Hz to 22 Hz)
Frequency range of fundamental F0 15 Hz to 22 Hz and 45 Hz to 65 Hz
Vacrms > 1V
Watts measurement (single and three-phase) (DC, DC rms, AC rms)
Measuring range 0 to 1650 kW DC or 1200 kW AC
Measuring range 4 kW, 40 kW, 400 kW, 1650 kW
Resolution 1 W in 4 kW
10 W in 40 kW
100 W in 400 kW
1 kW in 1200 kW
Accuracy 2.5% rdg ±5 digits
W1Ø < 2 kW ±0.08 kW
W3Ø < 4 kW ±0.25 kW
VA measurement (single- and three-phase) (DC, DC rms, AC rms)
Measuring range 0 to 1650 kVA DC or 1200 kVA AC
Autorange facility 4 kVA, 40 kVA, 400 kVA, 1650 kVA
Resolution 1 VA in 4 kVA
10 VA in 40 kVA
100 VA in 400 kVA
1 kVA in 1200 kVA
Accuracy VA > 2 kVA 2.5% rdg ±5 digits
VA < 2 kVA ±0.08 kVA
VAR measurement (single- and three-phase)
Measuring range 0 to 1250 kVAR
Autorange facility 4 kVAR, 40 kVAR, 400 kVAR, 1200 kVAR
Resolution 1 VAR in 4 kVAR
10 VAR in 40 kVAR
100 VAR in 400 kVAR
1 kVAR in 1200 kVAR
Accuracy VAR > 4 kVAR ±2.5% rdg ±5 digits
VAR < 4 kVAR ±0.25 kVAR
Power factor range 0.3 < PF < 0.99
Power factor (single- and three-phase)
Measuring range 0.3 capacitive to 1.0 and 1.0 to 0.3 inductive (72.5° capacitive to 0° and 0° to 72.5° inductive)
Resolution 0.001
Accuracy ±3°
Frequency range 15 Hz to 1 kHz
Displacement power factor (single- and three-phase)
Measuring range 0.3 capacitive to 1.0 and 1.0 to 0.3 inductive (72.5° capacitive to 0° and 0° to 72.5° inductive)
Resolution 0.001
Accuracy ±3°
Frequency range 15 Hz to 22 Hz and 45 Hz to 65 Hz
Kilowatt hour (kWHr)
Measuring range 40,000 kWHr
Autorange facility 4 kWHr, 40 kWHr, 400 kWHr, 4,000 kWHr, 40,000 kWHr
Resolution 1 WHr in 4 kWHr Range
10 WHr in 40 kWHr Range
100 WHr in 400 kWHr Range
1 kWHr in 4,000 kWHr Range
10 kWHr in 40,000 kWHr Range
Accuracy kWHr > 2 kWHr ±3% ±5 digits
kWHr < 2 kWHr ±0.08 kWHr
All Watts /VA /VAR /PF measurements Frequency range DC and 15 Hz to 1 kHz
Current range 10 A to 1400 A rms
Voltage range 1 V to 825 V rms
Maximum input 825 V rms / 1400 A rms
Maximum overload 1000 V rms / 10,000 A All measurements DC and 15 Hz to 1 kHz. Maximum overload 10,000 A or rms x frequency < 400,000
Frequency measurement (from current or voltage sources)
Measuring range 15 Hz to 1 kHz
Resolution 0.1 Hz
Accuracy 15 to 22 Hz ±0.5% rdg
40 Hz to 70 Hz ±0.5% rdg
15 Hz to 1000 Hz ±1% rdg
Current range 10 A to 1400 A rms
Voltage range 1 V to 825 V rms
Scope function
Current measurement Range 10 A / 20 A / 40 A / 100 A / 200 A / 400 A / 1000 A / 2000 A
Resolution 1 A in 40 A
10 A in 400 A
50 A in 2000 A
Accuracy ±3% rdg ±1 pixel
Maximum overload 10,000 A
Voltage measurement Range 4 V / 10 V / 20 V / 40 V / 100 V / 200 V / 400 V / 1000 V
Resolution 100 mV in 4 V
1 V in 40 V
10 V in 400 V
31.25 V in 1000 V
Accuracy ±2% rdg ±1 pixel
Maximum overload 1000 V rms
Frequency range DC and 15 Hz to 600 Hz
Time base 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms/div
Refresh rate 0.5 seconds
Maximum sampling rate 15.625 kHz
Inrush current function
Ranges 40 A, 400 A, and 2000 A
Resolution 10 mA in 40 A range
100 mA in 400 A range
1 A in 2000 A range
Accuracy I > 10 A ±5% rdg ±1 pixel
I < 10 A ±0.5 A
All measurements DC and 15 Hz to 1 kHz
Maximum overload Maximum overload 10,000 A or rms x frequency < 400,000
Amps rms is a true-rms measurement (AC + DC)
Capture time 1 s, 3 s, 10 s, 30 s, 100 s, and 300 s
Maximum sampling rate 15.625 kHz
Interface
USB Interface to a PC Power Log software for download, analysis and reporting
345 Upgrade Utility for installing a new firmware version
Logging Memory
Logging areas Three areas that can be used individually or combined into one large area
Averaging periods 1 s, 2 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 15 min, and custom
Logging Times
Volts and current mode Average time Logging time (1 area)
1 s 1 h 49 m
2 s 3 h 38 m
5 s 9 h 6 m
10 s 18 h 12 m
30 s 2 d 6 h 36 m
1 min 4 d 13 h 12 m
5 min 22 d 18 h 0 m
10 min 45 d 12 h 0 m
15 min 68 d 6 h 0 m
Logging time (3 areas)
1 s 5 h 12 m
2 s 10 h 24 m
5 s 1 d 2 h 00 m
10 s 2 d 4 h 00 m
30 s 6 d 12 h 1 m
1 min 13 d 0 h 12 m
5 min 65 d 0 h 15 m
10 min 130 d 0 h 30 m
15 min 195 d 0 h 45 m
V and A harmonics mode Average time Logging time (1 area)
1 s 0 h 34 m
2 s 1 h 8 m
5 s 2 h 52 m
10 s 5 h 44 m
30 s 17 h 13 m
1 m 1 d 10 h 26 m
5 m 7 d 4 h 10 m
10 m 14 d 8 h 20 m
15 m 21 d 12 h 30 m
Logging time (3 areas)
1 s 1 h 38 m
2 s 3 h 16 m
5 s 8 h 11 m
10 s 16 h 23 m
30 s 2 d 1 h 11 m
1 m 4 d 2 h 23 m
5 m 20 d 11 h 25 m
10 m 81 d 0 h 50 m
15 m 121 d 13 h 15 m
Single- and three-phase power mode Average time Logging time (1 area)
1 s 1 h 40 m
2 s 3 h 21 m
5 s 8 h 22 m
10 s 16 h 45 m
30 s 2 d 2 h 17 m
1 m 4 d 4 h 35 m
5 m 20 d 22 h 55 m
10 m 41 d 21 h 50 m
15 m 62 d 20 h 45 m
Logging time (3 areas)
1 s 4 h 47 m
2 s 9 h 34 m
5 s 23 h 57 m
10 s 1 d 23 h 54 m
30 s 5 d 23 h 25 m
1 m 11 d 23 h 25 m
5 m 59 d 21 h 5 m
10 m 119 d 18 h 10 m
15 m 179 d 15 h 15 m
