5500A/LEADS

฿73,331.00

Designed for use on the 5500A Multi-Product Calibrators

The 5500A/LEADS are professional-quality lead sets that ensure you always have the right probes and connectors for the job at hand. These top quality leads provide years of service and are designed to minimize connection loss and thermal effects. Each test lead has silicon insulation for easy handling and is rated at 1000V. In addition to the test leads, each Fluke lead set contains a full set of thermocouple extension wires with mini-thermocouple connectors on each end for fast, trouble-free calibration of thermocouple instruments. Each Fluke lead set comes with a soft carrying pouch for convenient transporting and storage.

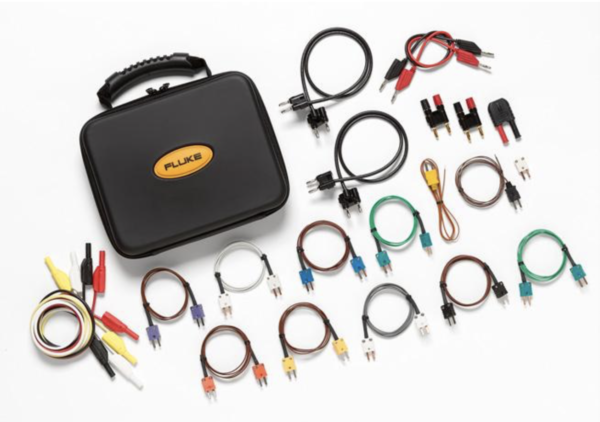

Parts included in the 5500A/LEADS test lead set (1 each except as noted):

  • Soft case 6.5” x 11” x 2.5” (16.51 x 27.94 x 6.35 cm)
  • Test lead, stackable, 100 cm, black
  • Test lead, stackable, 100 cm, red
  • Test lead, stackable, 100 cm, white
  • Test lead, stackable, 100 cm, yellow
  • T/C assembly, K-type, beaded, molded plug
  • T/C assembly, J-type, beaded, molded plug
  • T/C, molded-plug, copper shorting
  • Thermocouple adapter, K mini T/C to banana (80AK)
  • Thermocouple extension, 3 feet (1M), B
  • Thermocouple extension, 3 feet (1M), E
  • Thermocouple extension, 3 feet (1M), J
  • Thermocouple extension, 3 feet (1M), K
  • Thermocouple extension, 3 feet (1M), N
  • Thermocouple extension, 3 feet (1M), R
  • Thermocouple extension, 3 feet (1M), S
  • Thermocouple extension, 3 feet (1M), T
  • Thermocouple extension, 3 feet (1M), CU
  • Dual binding post adapters, banana plug, 2ea.
  • High current, 30A, test lead, 2ea.
  • Shielded calibration test leads, 24”, banana plug, 2ea.

One-year warranty

Test leads:

  • Category I, rated 1000V
  • Rated current, 10A

Thermocouple extensions:

  • 16 Ga
  • PTFE jacket
  • Standard limits of error
