SDA5D
The SDA5D is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms.
The SDA5D is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms.
Applications
Assembly, Machine Tending, Material Handling, Part Transfer
5 kg
Payload
DX100
Controller
845 mm
Horizontal Reach
1118 mm
Vertical Reach

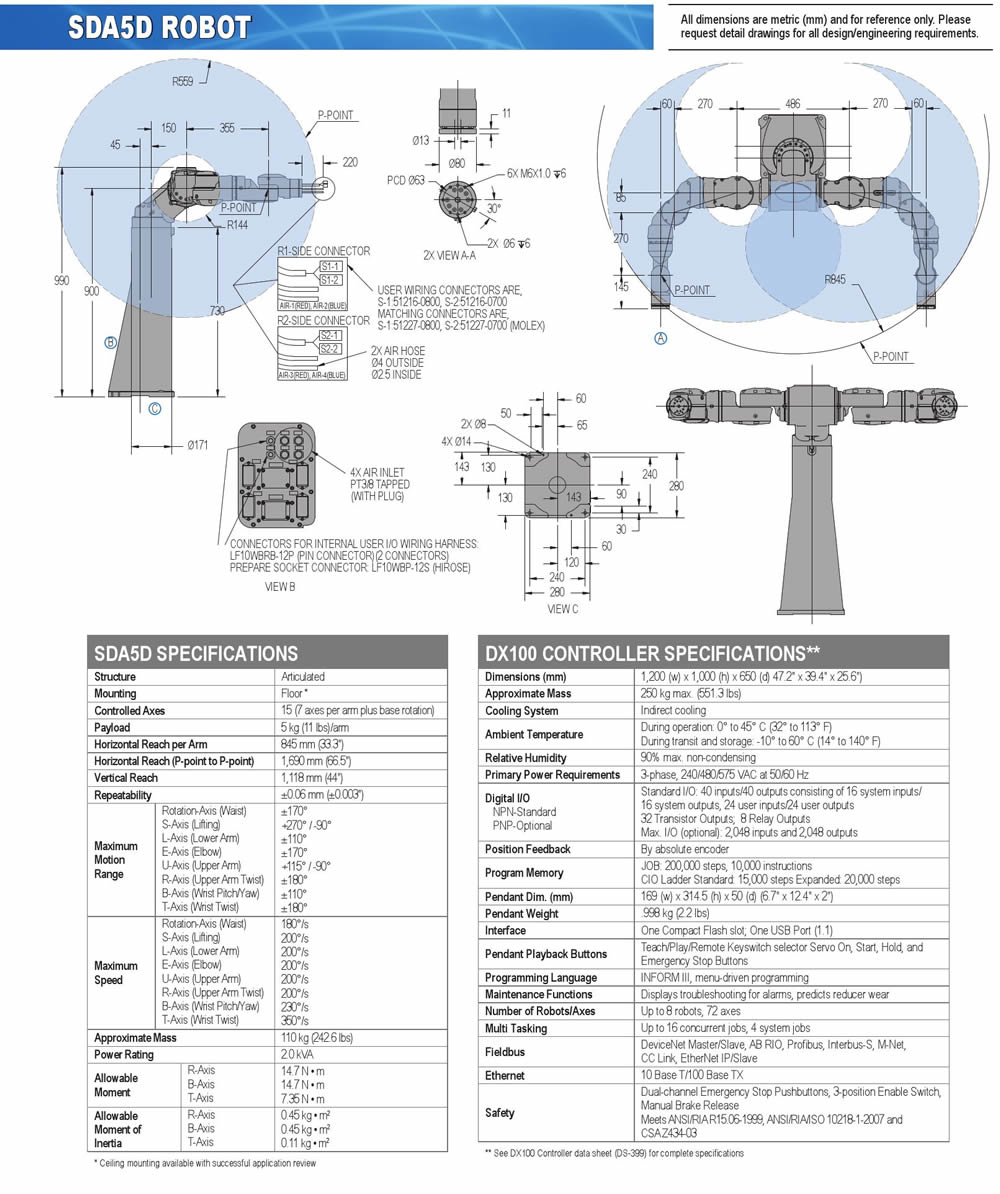

SDA5D Specifications
