GP180-120

Extended-Reach, Six-Axis Robot for High Payload Handling

Eliminating the need for a liner track, the extended-reach GP180-120 increases productivity for large part, high payload handling applications. A contoured upper arm enables easy access to parts in tight areas, and the reduced interference design accommodates close proximity placement of robots. While a wide wrist motion range eliminates interference, improving application flexibility, high moment and inertia ratings – combined with very fast axis speeds and acceleration capabilities – enable the GP180-120 robot to efficiently handle the toughest material handling project needs.

Applications
Die Cast, Machine Tending, Material Cutting/Trimming, Material Handling, Part Transfer, Press Tending
120 kg
Payload
YRC1000
Controller
3058 mm
Horizontal Reach
4105 mm
Vertical Reach

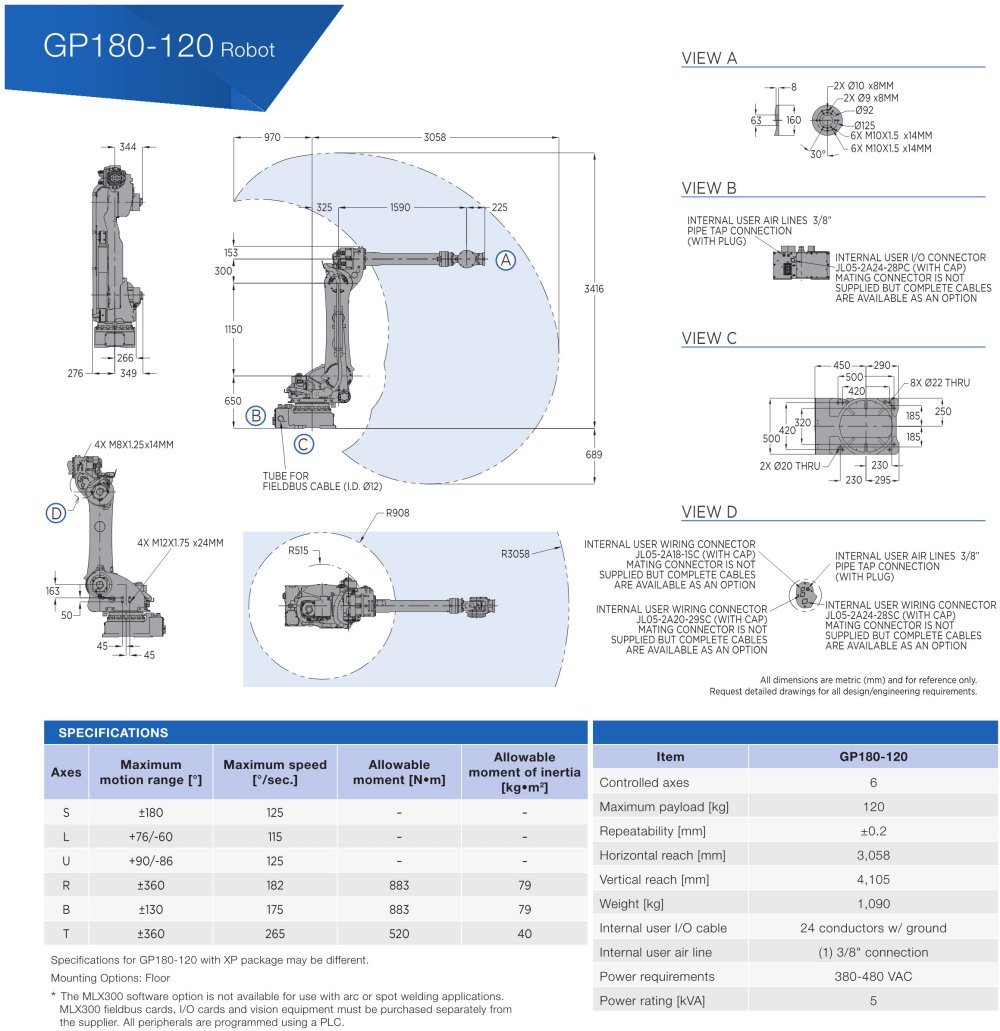

GP180-120 Specifications
