EPH130RLD

Press Tending Robot

These robots feature higher-performance drive systems on the S-, L- and U-axes (Axes 1, 2 and 3) for high duty cycle applications in the press room. The large work envelope allows the robot to be used to tend presses with spacing from 4-7 m.

Applications
Press Tending, Press/Forming
130 kg
Payload
DX100
Controller
3474 mm
Horizontal Reach
4151 mm
Vertical Reach

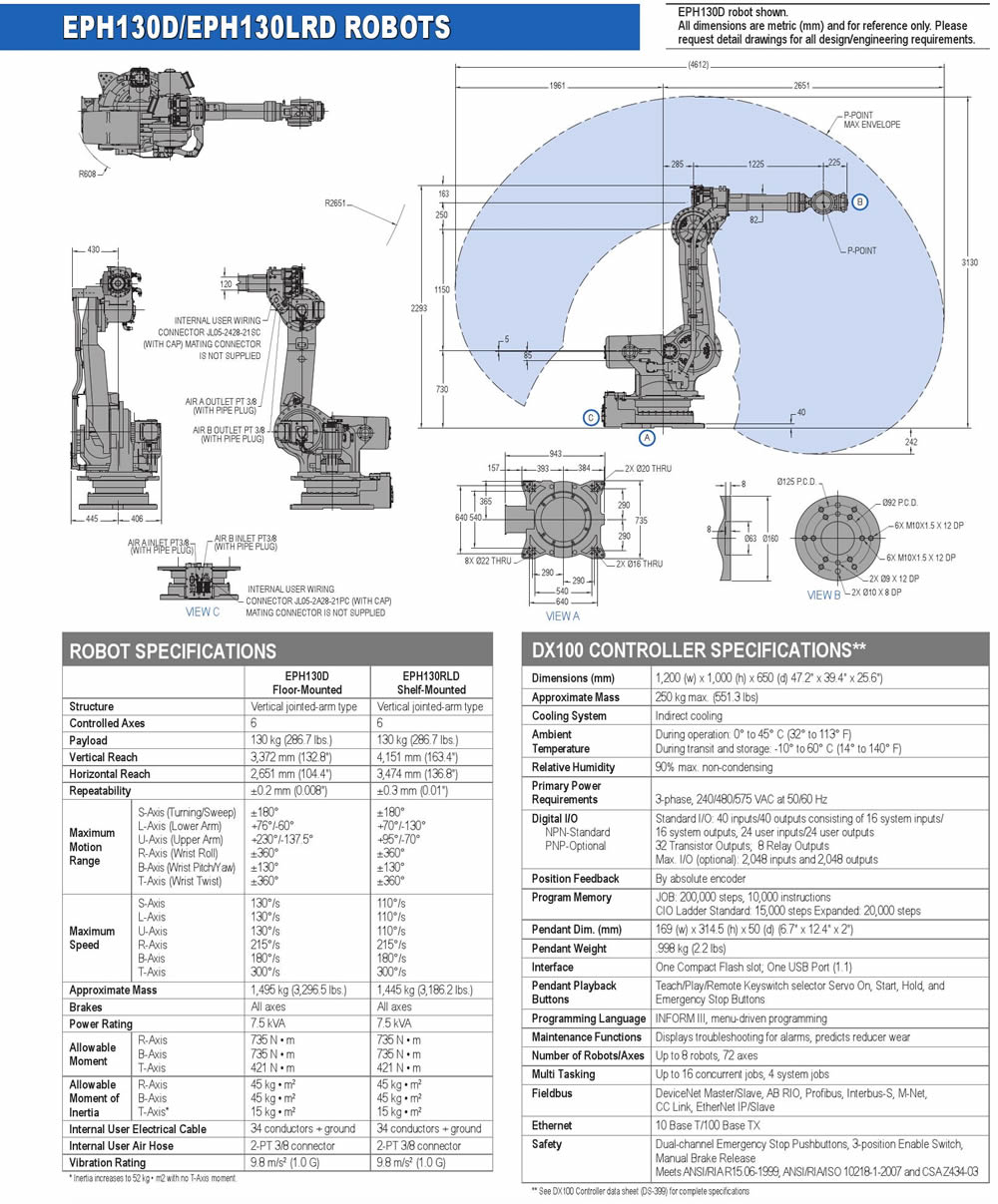

EPH130RLD Specifications
