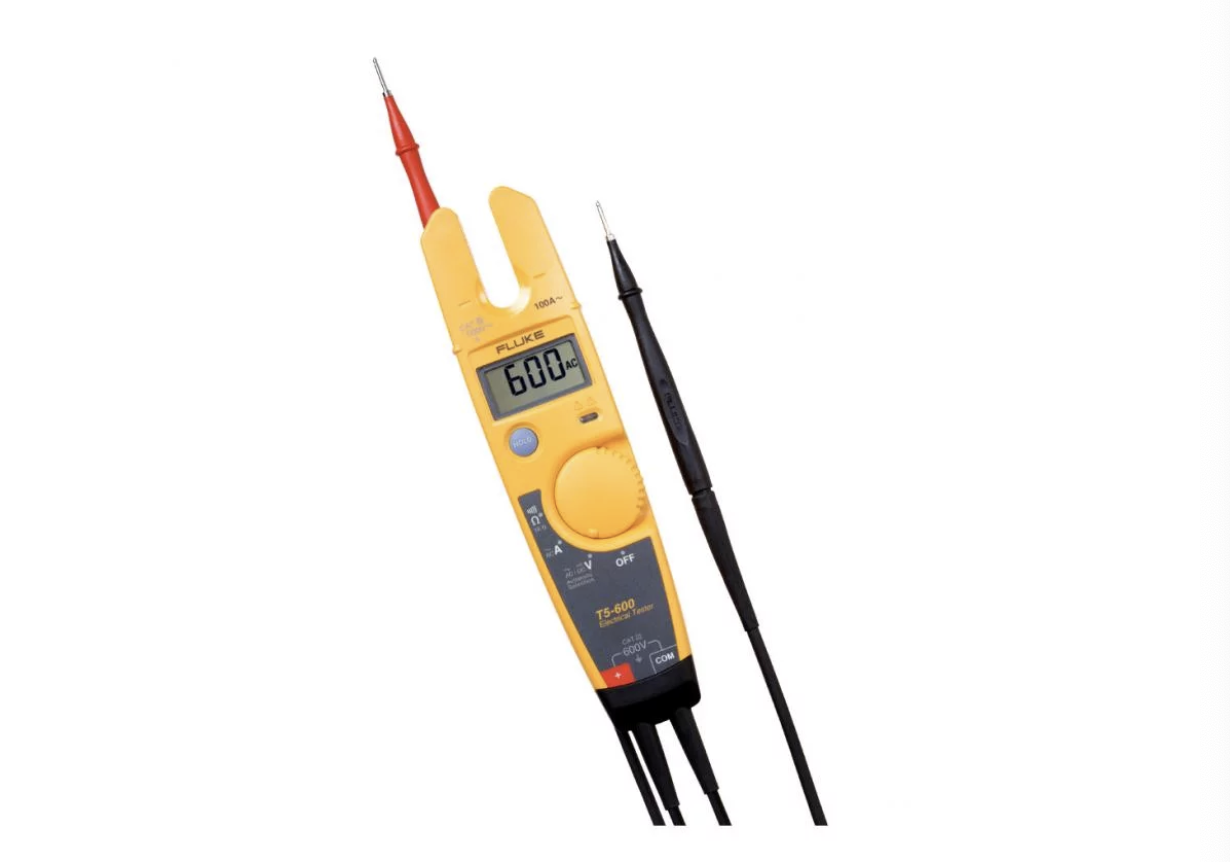

Fluke T5-600 Voltage, Continuity and Current Tester

฿5,824.00

Key features

“This meter is perfect for my use as I do HVAC and Electrical work and this will give me what I need for troubleshooting and performance of equipment.” – Paul

  • Automatically measure AC and DC voltage up to 600 V with precise digital resolution
  • Measure current up to 100 A without breaking the circuit with OpenJaw™ design
  • Troubleshoot resistance problems up to 1000 Ω
  • Work in tight spaces with detachable Slim Reach probe tips

Product overview: Fluke T5-600 Voltage, Continuity and Current Tester

Fluke T5-600 Voltage, Continuity and Current Tester The T5-600 is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.

Automatically measure AC and DC voltage up to 600 V with precise digital resolution

  • Auto-selects between AC and DC voltage
  • Suitable for residential or commercial applications

Measure current up to 100 A without breaking the circuit with OpenJaw™ design

  • OpenJaw™ design allows for fast and easy current measurement
  • Measure current more safely without metallic contact

Troubleshoot resistance problems up to 1000 Ω

  • Measure resistance when troubleshooting motors, HVAC systems or electrical systems
  • Built-in continuity beeper provides fast and easy go/no-go tests

Work in tight spaces with detachable Slim Reach probe tips

  • Features a compact design with handy probe storage, easily fits in one hand
  • The test lead slot in the back makes the meter an “extended handle” for the probe, leaving the other hand free to place the second lead
  • Test leads accept Fluke accessory test clips

Key safety features

  • Protected to EN61010-1 CAT III 600 V rating
  • Integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester
  • UL and CSA approved

Additional product features

  • Withstands a 10 ft. (3 m) drop
  • Offers Auto-off mode to conserve battery life
  • Fits into an optional holster that attaches to a belt and neatly stows test leads

Models: Fluke T5-600 Voltage, Continuity and Current Tester

Fluke T5-600
Fluke T5-600 Voltage, Continuity and Current Tester

Includes:

  • 600 V Voltage, continuity and current tester
  • 4 mm detachable probes
  • Instruction sheet

Specifications: Fluke T5-600 Voltage, Continuity and Current Tester

Specifications
Jaw opening 12.9 mm (0.5 in)
Max wire size 1/0 THHN Cable
Current range AC rms 0 to 100.0 A
Accuracy AC current (50/60 Hz) 3% ± 3 counts
AC response Averaging
Voltage range AC/DC 0 to 600 V
Voltage accuracy AC 1.5% ± 2 counts
DC 1% ± 1 count
Resistance range 0 to 1000 Ω
Continuity beeper threshold On at < 25 Ω, off at > 400 Ω
Volts indicator LED threshold Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature -10°C to 50°C
Storage temperature -30°C to 60°C
Humidity (without condensation) 0% to 95% (5°C to 30°C);
0% to 75% (30°C to 40°C);
0% to 45% (40°C to 50°C)
Dust/water resistance Yes
Operating altitude 2000 meters max
Temperature coefficient 0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Safety Specifications
Measurement Category IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals CSA, TUV
Maximum voltage 600 V between any terminal and earth ground
Mechanical and General Specifications
Size 30.5 x 51 x 203 mm
Weight 300 g
Warranty Two-years
Battery life 200 hour zinc chloride, 400 hour alkaline
Battery type 2 x AA
Low battery indicator Yes
Current sensor opening 12.9 mm
