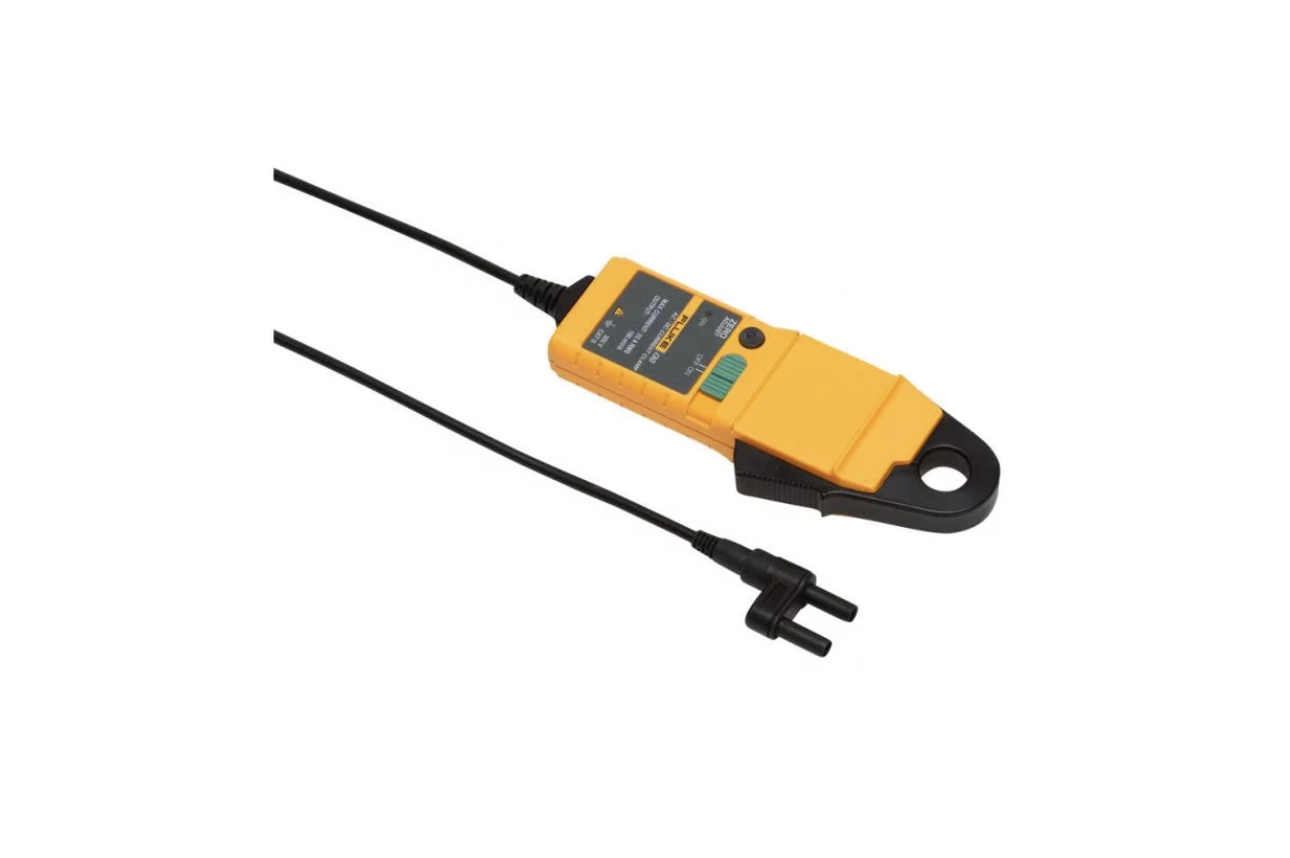

The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
| Electrical Specifications | |
| Specified current range | 30 mA to 30 A DC, 30 mA to 20 A AC rms |
| Usable current range | 5 mA to 30 A DC, 30 mA to 20 A AC rms |
| Crest Factor | 1.4 in |
| Output sensitivity | 100 mV/A |
| Accuracy (at +25°C) | ±1% of reading ±2 mA |
| Resolution | ±1 mA |
| Load impedance | > 10 k Ohms and ≤ 100pF |
| Conductor position sensitivity | ±1% relative to center reading |
| Frequency range | DC to 20 kHz (-0.5 dB) |
| Temperature coefficient | ±0.01% of reading/°C |
| Power supply | 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator |
| Working voltage (see Safety Standards section) | 300 V AC rms or DC |
| General Specifications | |
| Maximum conductor size | 19 mm diameter |
| Output connection | 4 mm safety connector |
| Output zero | Manual adjust via thumbwheel |
| Cable length | 1.5 meters |
| Operating temperature range | 0°C to +50°C |
| Storage temperature range (with battery removed) | -20°C to +85°C |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 250 g |
| Safety | IEC 61010-1, Pollution Degree 2 |
| IEC 61010-2- 032: CAT III 300V | |
| Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz. | |
| EMC Compatibility | IEC 61326-1: Portable Electromagnetic Environment |
