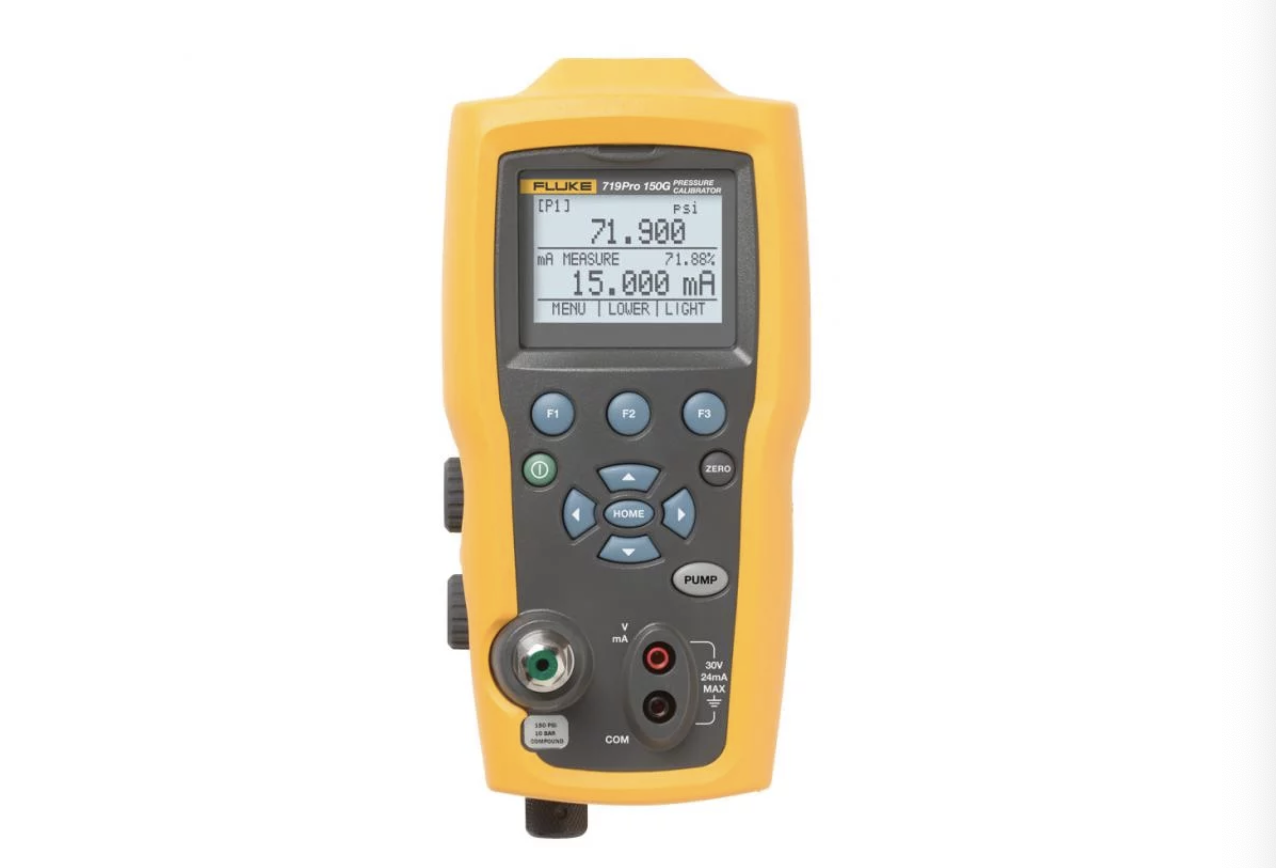

Fluke 719Pro Electric Pressure Calibrator


Key features

  • Unique integrated electric pump for one handed pressure calibration
  • Test pressure switches easily with easy-to-use switch test function
  • Precision pressure adjust vernier for easy and accurate pressure calibration
  • Ideal accuracy and performance (0.025%) for reference class transmitter calibration
  • 30 psi, 150 psi and 300 psi pressure ranges
  • Programmable pressure calibrator pump limit:
    • Eliminates over-pressurization
    • Allows the user to program target pressures for pumping
  • Extended pressure measurement range with any of 29 750P Pressure Modules
  • Pump cleanout ports reduce pump failures from moisture and fluid damage
  • Fluid trap included with the unit to mitigate chance of fluid damage in at-risk applications
  • Precision temperature measurement with optional RTD probe

Product overview: Fluke 719Pro Electric Pressure Calibrator

Fluke 719Pro Electric Pressure Calibrator sources, simulates, and measures mA signals and more

The 719Pro includes a full functioning loop calibrator that sources, simulates and measures mA signals and more making it the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges.

Get the ultimate in measurement flexibility with the large backlit screen, which displays three parameters at once:

  • Pressure measurement from internal or external sensor
  • Sourced/simulated or measured mA values
  • Temperature measured by optional RTD probe

Models: Fluke 719Pro Electric Pressure Calibrator

Fluke 719Pro 30G
Fluke 719Pro-30G Electric Pressure Calibrator
30 psig


  • Test leads with alligator clips
  • Printed user’s manual and user’s manual on CD-ROM in 14 languages
  • Fluid trap
  • Carrying case
  • 1/4 inch NPT to 1/4 inch ISO adapter
  • Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
  • Traceable Certificate of Calibration
Fluke 719Pro 150G
Fluke 719Pro-150G Electric Pressure Calibrator
150 psig
Fluke 719Pro 300G
Fluke 719Pro-300G Electric Pressure Calibrator
300 psig

Specifications: Fluke 719Pro Electric Pressure Calibrator

Fluke-719Pro-30G Range -12 to 30 psi / -0.8 to 2 bar
Resolution 0.001 psi / 0.0001 bar
Fluke-719Pro-150G Range -12 to 150 psi / -0.8 to 10 bar
Resolution 0.01 psi / 0.001 bar
Fluke-719Pro-300G Range -12 to 300 psi / -0.8 to 20 bar
Resolution 0.01 psi / 0.001 bar
Accuracy ±0.025% of full scale, 6 months
±0.035% of full scale, 1 year
Temperature effect (all ranges) Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
Dry air and non-corrosive gas only
No effect on accuracy on all functions from 15°C to 35°C
Function Range Resolution Accuracy (1 year)
mA DC (simulation and measurement) 0-24 mA DC 0.001 mA ±0.015% of reading ±2 counts
1000 ohm maximum load in mA source, 26 V DC maximum voltage in mA simulate
Volts DC (measurement only) 30 V DC 0.001 V ±0.015% of reading ±2 counts
No AC voltage measurement, do not exceed 30 V DC
Temperature (measurement only, Pt100 RTD) -50 to 150°C
(-50°F to 302°F)
Temperature ±0.1°C (0.2°F)
±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe (optional accessory)
Loop power supply 24 V DC N/A 24 mA at 24 V
Temperature effect (all functions) Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
No effect on accuracy on all functions from 15°C to 35°C
Operating temperature -10°C to +50°C
Storage temperature (with batteries) Per battery manufacturer’s specification within storage specification below
Storage temperature (without batteries) -20°C to +60°C
Power Requirements
Battery Eight (8) standard Alkaline AA batteries
Battery life 300 pump cycles to 150 psi minimum; 1000 pump cycles to 30 psi; 100 pump cycles to 300 psi minimum
Dimensions (H x W x D) 24.13 x 11.18 x 7 cm (9.5 x 4.4 x 2.8 in)
Weight With holster 1.2 kg (2.5 lb)
Pressure 1/8 inch female NPT
Electrical Standard banana jacks
RTD 4 pin miniature circular
External module 6 pin miniature circular
Engineering Units (Configurable)
psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
