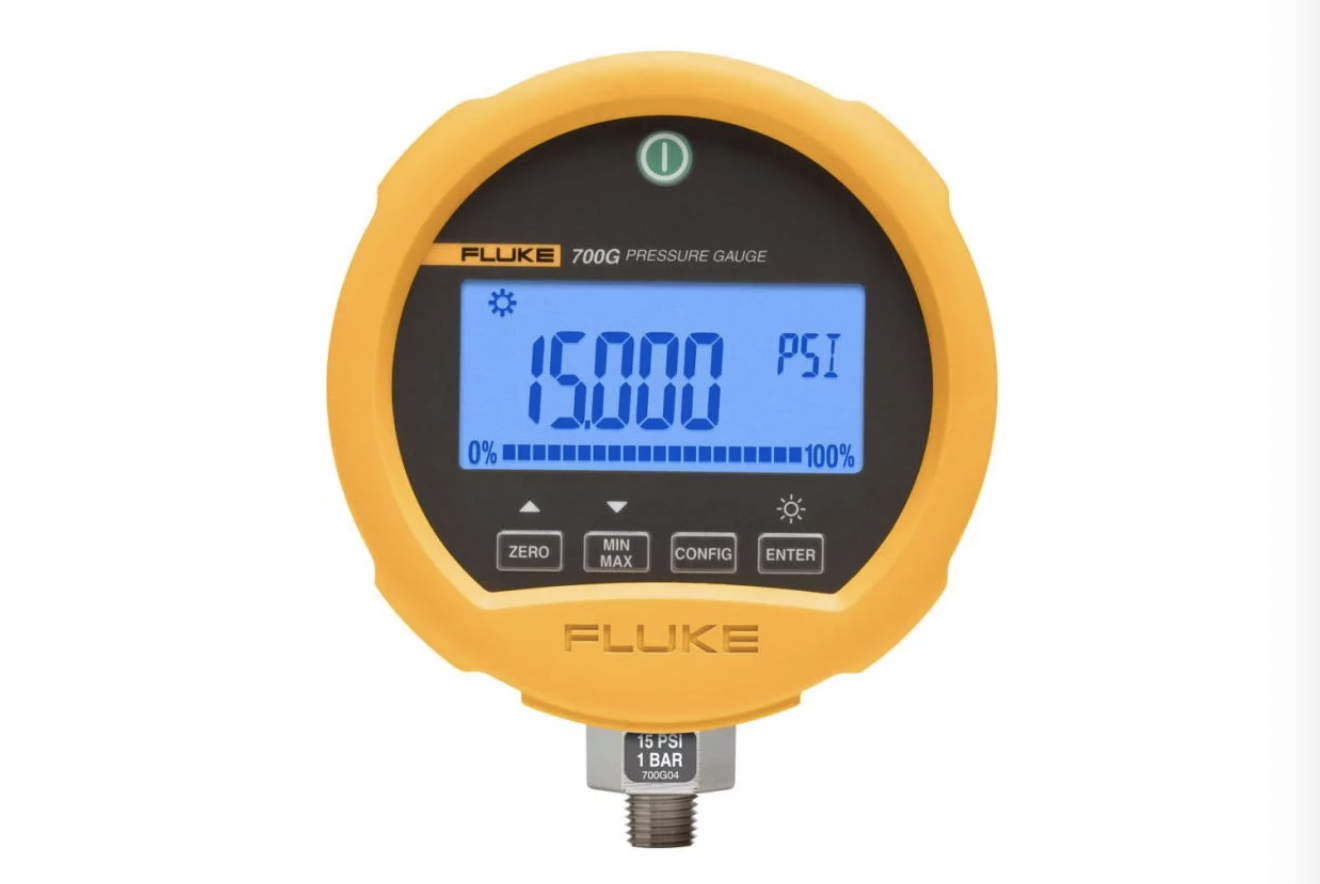

Fluke 700G Pressure Gauge Calibrator
Fluke 700G Pressure Gauge Calibrator

Fluke 700G Pressure Gauge Calibrator

฿61,756.00

Key features

  • Rugged, high-quality pressure gauge calibrator for fast and accurate test results
  • Delivers precision pressure measurements in 23 ranges from ±10 inH2O/20 mbar to 10,000 psi/690 bar
  • Delivers high accuracy—0.05% total measurement uncertainty for one year
  • Provides bright backlit display for easy viewing
  • Features rugged, durable design with protective holster
Categories: , Tag:

Product overview: Fluke 700G Pressure Gauge Calibrator

Fluke 700G Precision Pressure Gauge Calibrator offers 23 ranges of pressure measurements

The Fluke 700G is a rugged, easy-to-use, and reliable pressure gauge calibrator that offers 23 ranges from ±10 inH 2 O/ 20 mbar to 10,000 psi/690 bar with accuracy of 0.05% of full scale. Reference class models offer gauge accuracies to 0.04% of reading.

The 700G is compatible with most hydraulic and pneumatic test pumps. And it combines with one of the Fluke test pump kits (700PTPK or 700HTPK) to provide a complete pressure testing and calibration solution. You can use 700G/TRACK software to upload more than 8,000 pressure measurements to a PC.

The 700G runs on three standard AA alkaline batteries to deliver 1,500 hours without backlight (continuous on) or 2,000 hours at slow sample rate.

Other useful features:

  • Combines with either the 700PTPK pneumatic pump kit or the 700HTPK hydraulic pump kit for a complete measurement and testing solution
  • Logs more than 8,493 pressure measurements to memory and uploads to a PC (with 700G/TRACK software)
  • Allows you to work safely in classified areas known to include explosive gasses:
    • CSA: Class 1, Div2, Groups A-D rating
    • ATEX: rating II 3 G Ex nA IIB T6
  • Comes with three-year warranty

Models: Fluke 700G Pressure Gauge Calibrator

Fluke 700G01
Fluke 700G01 Precision Pressure Gauge Calibrator
±10 inH2O WC (0.4 psig).

Includes:

  • Manual on CD-ROM in 14 languages
  • Traceable certificate of calibration
  • 1/4˝ NPT to 1/4˝ ISO adapter
Fluke 700G02
Fluke 700G02 Precision Pressure Gauge Calibrator
±30 inH2O WC (1 psig)
Fluke 700G04
15 psig
Fluke 700G05
Fluke 700G05 Precision Pressure Gauge Calibrator
30 psig
Fluke 700G06
Fluke 700G06 Precision Pressure Gauge Calibrator
100 psig
Fluke 700G07
Fluke 700G07 Precision Pressure Gauge Calibrator
500 psig
Fluke 700G08
Fluke 700G08 Precision Pressure Gauge Calibrator
1,000 psig
Fluke 700G10
Fluke 700G10 Precision Pressure Gauge Calibrator
2,000 psig
Fluke 700G27
Fluke 700G27 Precision Pressure Gauge Calibrator
300 psig
Fluke 700G29
Fluke 700G29 Precision Pressure Gauge Calibrator
3,000 psig
Fluke 700G30
Fluke 700G30 Precision Pressure Gauge Calibrator
5,000 psig
Fluke 700G31
Fluke 700G31 Precision Pressure Gauge Calibrator
10,000 psig
Fluke 700GA4
Fluke 700GA4 Precision Pressure Gauge Calibrator
15 psia
Fluke 700GA5
Fluke 700GA5 Precision Pressure Gauge Calibrator
30 psia
Fluke 700GA6
Fluke 700GA6 Precision Pressure Gauge Calibrator
100 psia
Fluke 700GA27
Fluke 700GA27 Precision Pressure Gauge Calibrator
300 psia
Fluke 700RG05
Fluke 700RG05 Precision Pressure Gauge Calibrator
Reference, 30 psig
Fluke 700RG06
Fluke 700RG06 Precision Pressure Gauge Calibrator
Reference, 100 psig
Fluke 700RG07
Fluke 700RG07 Precision Pressure Gauge Calibrator
Reference, 500 psig
Fluke 700RG08
Fluke 700RG08 Precision Pressure Gauge Calibrator
Reference, 1000 psig
Fluke 700RG29
Fluke 700RG29 Precision Pressure Gauge Calibrator
Reference, 3,000 psig
Fluke 700RG30
Fluke 700RG30 Precision Pressure Gauge Calibrator
Reference, 5,000 psig
Fluke 700RG31
Fluke 700RG31 Precision Pressure Gauge Calibrator
Reference, 10,000 psig

Specifications: Fluke 700G Pressure Gauge Calibrator

700R Ranges: Temperature Compensation 0 e °C to 50 °C (32 °F to 122 °F) to rated accuracy.
For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005% FS/ °C
Model Range Resolution Accuracy Burst Pressure
Fluke-700G01 -10 to +10 inH2O
-20 mbar to 20 mbar		 0.001 inH2O,
0.001 mbar		 Positive pressure ±0.1% of range,
Vacuum ±0.1% of range		 3 psi,
210 mbar
Fluke-700G02 -1 to +1 psi,
-70 mbar to 70 mbar		 0.0001 psi,
0.001 mbar		 Positive pressure ±0.1% of range,
Vacuum ±0.1% of range		 5 psi,
350 mbar
Fluke-700G04 -14 to 15 psi,
-0.97 to 1 bar		 0.001 psi,
0.0001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 60 psi,
4 bar
Fluke-700G05 -14 to 30 psi,
-0.97 to 2 bar		 0.001 psi,
0.0001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 120 psi,
8 bar
Fluke-700G06 -12 to 100 psi,
-0.83 to 6.9 bar		 0.01 psi,
0.0001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 400 psi,
26 bar
Fluke-700G27 -12 to 300 psi,
-0.83 to 20 bar		 0.01 psi,
0.001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 1200 psi,
80 bar
Fluke-700G07 -12 to 500 psi,
-0.83 to 34 bar		 0.01 psi,
0.001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 2000 psi,
138 bar
Fluke-700G08 -14 to 1000 psi,
-0.97 to 69 bar		 0.1 psi,
0.001 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 4000 psi,
266 bar
Fluke-700G10 -14 to 2000 psi,
-.97 bar to 140 bar		 0.1 psi,
0.01 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 8000 psi,
550 bar
Fluke-700G29 -14 to 3000 psi,
-0.97 to 200 bar		 0.1 psi,
0.01 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 10000 psi,
690 bar
Fluke-700G30 -14 to 5000 psi,
-0.97 to 340 bar		 0.1 psi,
0.01 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 10000 psi,
690 bar
Fluke-700G31 -14 to 10000 psi,
-0.97 to 690 bar		 1 psi,
0.01 bar		 Positive pressure ±0.05% FS
Vacuum ±0.1% FS		 20000 psi,
1035 bar
Fluke-700GA4 0 to 15 psia,
0 to 1 bar absolute		 0.001 psi,
0.0001 bar		 ±0.05% of range 60 psi,
4 bar
Fluke-700GA5 0 to 30 psia
0 to 2 bar absolute		 0.001 psi,
0.0001 bar		 ±0.05% of range 120 psi,
8 bar
Fluke-700GA6 0 to 100 psia,
0 to 6.9 bar absolute		 0.01 psi,
0.0001 bar		 ±0.05% of range 400 psi,
27 bar
Fluke-700GA27 0 to 300 psia,
0 to 20 bar absolute		 0.01 psi,
0.001 bar		 ±0.05% of range 1200 psi,
80 bar
Fluke-700RG05 -14 to +30 psi,
-0.97 to +2 bar		 0.001 psi,
0.0001 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.05% of range		 90 psi,
6 bar
Fluke-700RG06 -12 to 100 psi,
-0.83 to 6.9 bar		 0.01 psi,
0.0001 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 400 psi,
27 bar
Fluke-700RG07 -12 to 500 psi,
-0.83 to 34		 0.01 psi,
0.001 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 2000 psi,
138 bar
Fluke-700RG08 -14 to 1000 psi,
-0.97 to 69 bar		 0.1 psi,
0.001 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 4000 psi,
275 bar
Fluke-700RG29 -14 to 3000 psi,
-0.97 to 200 bar		 0.1 psi,
0.01 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 10000 psi,
690 bar
Fluke-700RG30 -14 to 5000 psi,
-0.97 to 340 bar		 0.1 psi,
0.01 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 15000 psi,
1035 bar
Fluke-700RG31 -14 to 10000 psi,
-0.97 to 690 bar		 1 psi,
0.01 bar		 Positive pressure,
±0.04% of reading +.01% of range,
Vacuum ±0.1% of range		 20000 psi,
1380 bar
Media compatibility
  • 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas
  • 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
Mechanical Specifications
Dimensions (H x W x D) 12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure connection ¼ in NPT Male
Housing/Weight Cast ZNAL 0.56 kg (1.22 lb) with holster
Display 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
Power Three (3) AA alkaline batteries
Battery life 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
