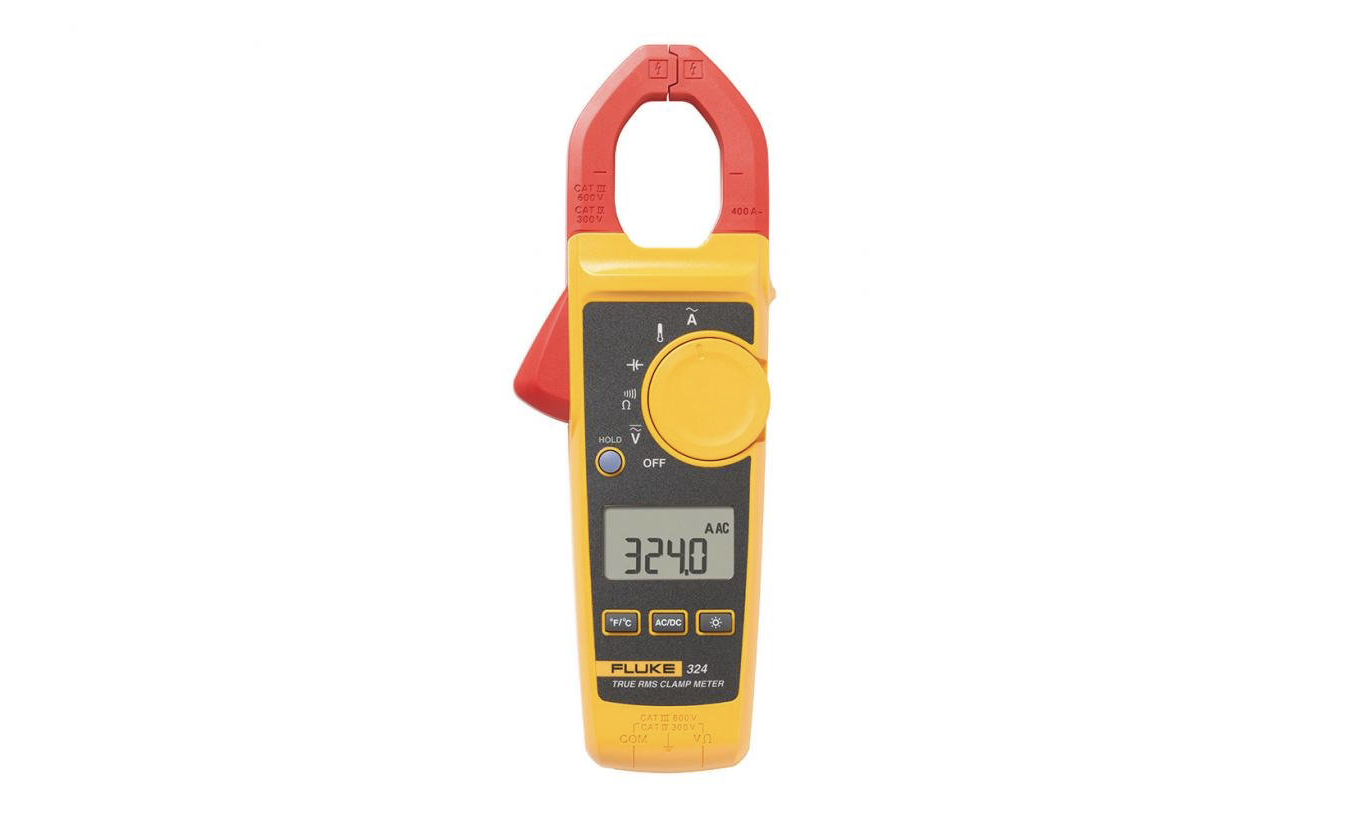

Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

฿9,830.00

Key features

“It does everything a HVAC or Maintenance Tech would need. Out of 12 guys I work with 9 of them had the 324” – Thomas

  • Rugged, reliable basic True-RMS clamp meter
  • Measure AC current up to 400 A, AC/DC voltage to 600V
  • Measure resistance up to 4kΩ, continuity detection ≤ 30Ω
  • Additions from 323 Clamp: Temperature, Capacitance, Backlight
Categories: , Tag:

Product overview: Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.

Troubleshoot problems safely and accurately

  • CAT III 600 V, CAT IV 300 V safety rating
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current up to 400 A
  • Measures AC/DC voltage to 600V
  • Measures resistance to 4kΩ with continuity detection ≤ 30Ω
  • Measures temperature from -10C to 400C
  • Measures capacitance to 1000μF
  • Backlight and hold function captures a reading on the display
  • Comes with a two-year warranty and soft carrying case

Fluke 320 Series Clamp Meters for electrical troubleshooting

Clamp family models and feature comparison

Contents:

  • Fluke 324 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case

Models: Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Fluke 324
Fluke 324 True-RMS Clamp Meter

Includes:

  • Fluke 324 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case

Specifications: Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Specifications
AC current Range 40.00 A / 400.0 A
Accuracy 1.5% ± 5 digits (45 Hz to 400 Hz)
Note: Add 2% for position sensitivity
DC current Range
Accuracy
AC voltage Range 600.0 V
Accuracy 1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Accuracy 1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance 0 to 100.0 μF / 100μF to 1000 μF
Frequency
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 208 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
