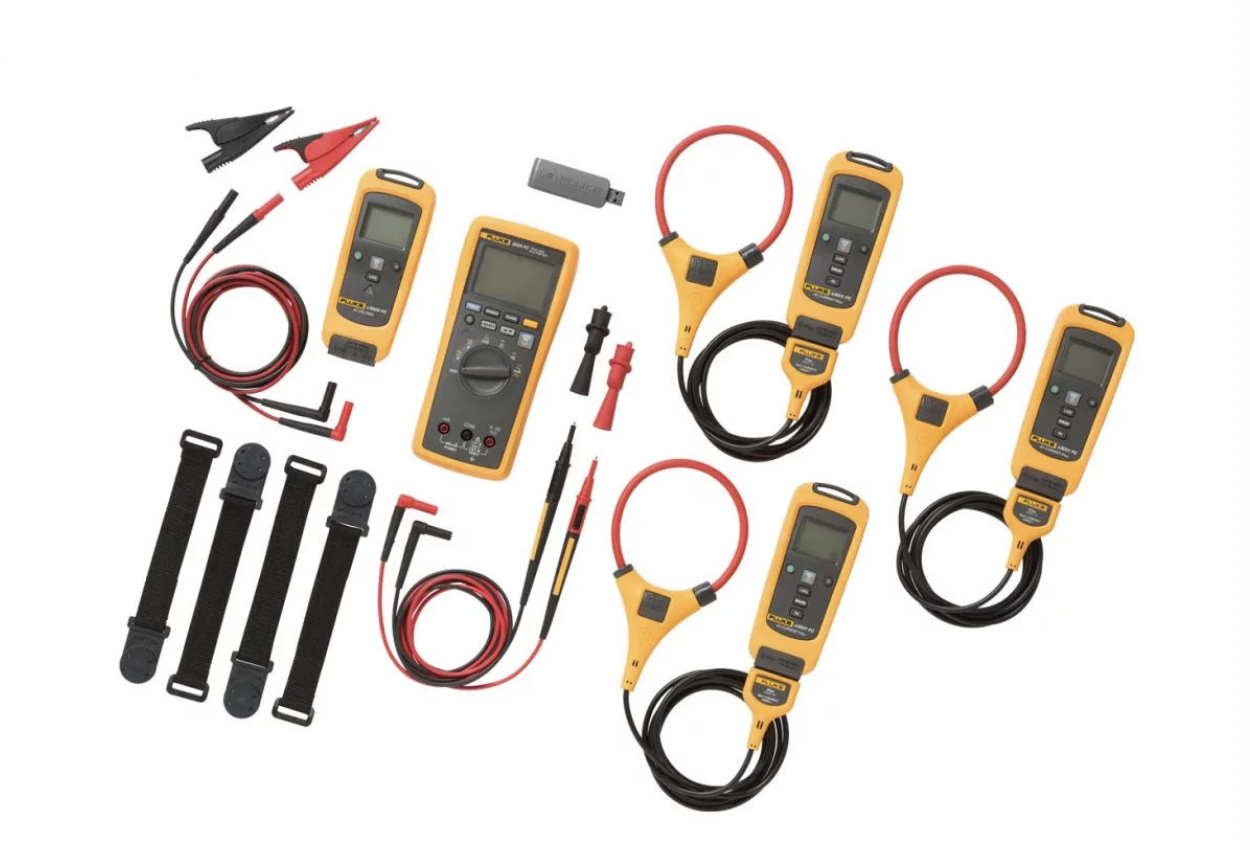

Detailed Specifications |
AC Voltage |
Range ¹ / Resolution |
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V |
Accuracy 234 |
45 Hz to 500 Hz |
1.0% + 3 |
500 Hz to 1 kHz |
2.0% + 3 |
1. All AC voltage ranges are specified from 1% of range to 100% of range.
2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3.
4. Do not exceed 107 V-Hz. |
DC Voltage, Continuity, Resistance, Diode Test and Capacitance |
Function |
mV |
Range / Resolution |
600.0 mV / 0.1 mV |
Accuracy |
0.09% + 2 |
V |
Range / Resolution |
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
1000 V / 1 V |
Accuracy |
0.09% + 2
0.15% + 2 |
))) |
Range / Resolution |
600 Ω / 1 Ω |
Accuracy |
Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. |
Ω |
Range / Resolution |
600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
60.00 kΩ / 0.1 kΩ
600.0 kΩ / 0.001 MΩ
50.00 MΩ / 0.01 MΩ |
Accuracy |
0.5% + 2
0.5% + 1
1.5% + 3 |
Diode test |
Range / Resolution |
2.000 V / 0.001 V |
Accuracy |
1% + 2 |
µF |
Range / Resolution |
1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF1 / 1 μF |
Accuracy |
1.2% + 2
10% typical |
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. |
AC and DC Current |
Function |
mA AC
(45 Hz to 1 kHz) |
Range 1 / Resolution |
60.00 mA / 0.01 mA
400.0 mA 3/ 0.1 mA |
Accuracy |
1.5% + 3 |
mA DC 2 |
Range 1 / Resolution |
60.00 mA / 0.01 mA
400.0 mA 3/ 0.1 mA |
Accuracy |
0.5% + 3 |
1. All AC current ranges are specified from 5% of range to 100% of range.
2. Input burden voltage (typical): 400 mA input 2 mV/mA.
3. 400.0 mA accuracy specified up to 600 mA overload. |
Frequency |
Range / Resolution |
99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 kHz
99.99 kHz / 0.01 kHz |
Accuracy 1 |
0.1% + 1 |
1 Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. |
Input Characteristics |
Function |
Overload
protection |
Input impedance
(nominal) |
Common mode rejection ratio (1 kΩ unbalance) |
Normal mode rejection |
|
1100 Vrms |
> 10 MΩ < 100 pF |
> 120 dB at DC, 50 Hz or 60 Hz |
> 60 dB at 50 Hz or 60 Hz |
|
1100 Vrms |
> 10 MΩ < 100 pF |
> 60 dB, DC to 60 Hz |
> 60 dB at 50 Hz or 60 Hz |
|
1100 Vrms |
> 10 MΩ < 100 pF |
> 120 dB at DC, 50 Hz or 60 Hz |
> 60 dB at 50 Hz or 60 Hz |
Open circuit test voltage |
Full scale voltage |
Typical short circuit current |
To 6 MΩ |
50 MΩ |
Typical short circuit current |
|
1100 Vrms |
< 2.7 VDC |
< 0.7 VDC |
< 0.9 VDC |
< 350 mA |
|
1100 Vrms |
< 2.7 VDC |
2.000 VDC |
|
< 1.1 mA |
mA Function |
Overload protection |
Fused, 44/100 A, 1000 V FAST Fuse |
Overload |
600 mA overload for 2 minutes maximum, 10 minutes rest minimum |
MIN/MAX Recording Accuracy |
DC functions |
The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration. |
AC functions |
The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration. |
General Specifications |
Maximum voltage between any terminal and earth ground |
1000 VDC or AC rms |
Ω fuse protection from A inputs |
0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only |
Display (LCD) |
Update rate |
4/sec |
Volts, amps, ohms |
6000 counts |
Frequency |
10,000 counts |
Capacitance |
1,000 counts |
Battery type |
Three AA Alkaline batteries, NEDA 15A IEC LR6 |
Battery life |
250 hours minimum |
RF communications |
2.4 GHZ ISM Band |
RF communication range |
Open air, unobstructed |
Up to 20 m |
Obstructed, sheetrock wall |
Up to 6.5 m |
Obstructed, concrete wall, or steel electrical enclosure |
Up to 3.5 m |
Temperature |
Operating |
-10°C to 50°C |
Storage |
-40°C to 60°C |
Temperature coefficient |
0.1 x (specified accuracy) / °C (< 18°C or > 28°C) |
Relative humidity |
0% to 90% (0°C to 35°C)
0% to 75% (35°C to 40°C)
0% to 45% (40°C to 50°C) |
Altitude |
Operating |
2,000 m |
Storage |
12,000 m |
Electromagnetic compatibility
EMI, RFI, EMC, RF |
EN 61326-1:2006, EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008,
FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE |
Safety compliance |
ANSI/ISA 61010-1 / (82.02.01): 3rd edition
CAN/CSA-C22.2 No 61010-1-12: 3rd edition
UL 61010-1: 3rd edition
IEC/EN 61010-1:2010 |
Certifications |
CSA, FCC, CE |
Ingress Protection (IP) rating |
IP54 |
Pollution Degree |
2 |
Size (H x W x L) |
4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) |
Weight |
340 g (12 oz) |
Warranty |
Three years |
Not compatible with Fluke CNX test tools |
